Description

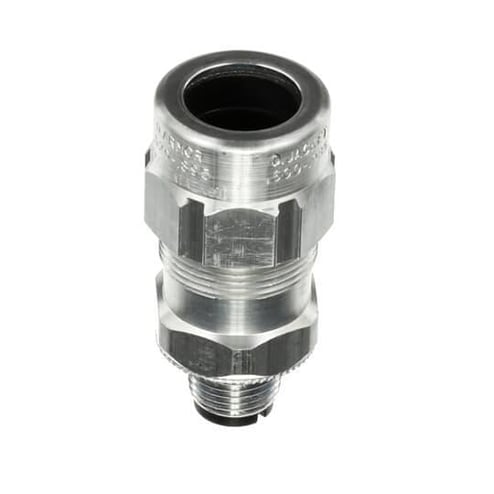

The ABB T&B Fittings STE050 secures Teck cable connections in electrical installations with a durable aluminum construction. This 1/2-inch trade size connector accommodates cable openings from 0.6 to 0.985 inches, providing reliable strain relief for your wiring systems. The aluminum body resists corrosion while delivering long-term performance in commercial and industrial applications. The STE series design ensures proper cable retention and electrical continuity for code-compliant installations.
The Star Teck? STE cable fitting series is designed for optimum integrity in ordinary applications. The STEX series is specially designed for classified hazardous areas. Both are designed to stand up to the harshest and most corrosive environment.
Features
- Patented power grip grounding ring
- Elastomeric collar ring/bushing for greater cable ranges
- Built-in jacket stripping gauge on gland nut
- Gland nut can be tightened with hammer and screwdriver
- Provides means for passing armored, metal clad, jacketed cable through a bulkhead or enclosure in hazardous areas
- Form a mechanical grip and water and/or oil resistant seal for cord
- Provide grounding continuity of cable armor
- Designed to accommodate a broad range of cables
- Each hub range overlaps the adjacent hub range, thereby minimizing the possibility of mismatched cables and fittings in the field
- Built-in sealing device
- 300 in-lb gland torque
- 0.612 in Dia throat without end stop
- Now one STAR TECK EXTREME fitting could cover the range of three conventional STAR TECK fitting hub sizes. With the STAR TECK EXTREME fitting also came the invention of removable armour stops another feature that has since become an industry standard.
- This fitting simplified matching cables to fittings and reduced the number of different size fittings that had to be inventoried
Specifications
GTIN: 00786210822570
UNSPSC: 39121311
Discontinued Manufacturer Part Number: 7TBA051310R0000
Country of Origin: Canada
| Color | Silver |
|---|---|
| Trade Size | 1/2 in |
| Cable Type | ACWU/JMC/MC/TECK |
| Connection Type | NPT |
| Material | Aluminum |
| Volume | 0 |
| BABA Compliant | No |
| Series | STE |
| Dimensions | 1.63 in Dia x 2.52 in L |
| Weight | 11 lbs |
| Cable Openings | 0.6 to 0.985 in |
| Sold as | EACH |
