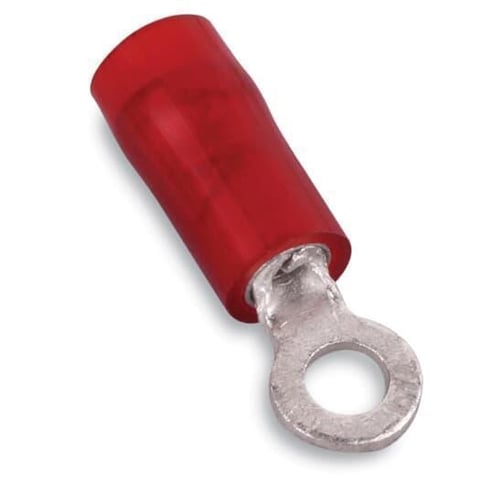

Sta-Kon RA713 RA Series Insulated Ring Terminal, 22 to 16 AWG Conductor, 1.1 in L, Insulation Grip Sleeve Barrel, Copper, Red
Sta-Kon RA713 RA Series Insulated Ring Terminal, 22 to 16 AWG Conductor, 1.1 in L, Insulation Grip Sleeve Barrel, Copper, Red
MPN RA713
ASPN TNBRA713
UPC 786210817187
Description
Features
- Self-insulated with high dielectric strength nylon sleeves
- An inner bronze insulation grip sleeve lengthens the flexing radius of the conductor and eliminates conductor creep
- Made of copper and has electro-tin plating for high conductivity/corrosion resistance
- 1000 pieces/pack
Specifications
GTIN: 00786210817187
UNSPSC: 39121432
Country of Origin: United States of America (the)
| Type | Insulated |
|---|---|
| Color | Red |
| Tongue Type | Ring |
| Barrel Type | Insulation Grip Sleeve |
| Voltage Rating | 600 VAC |
| Weight | 29.1 lbs |
| Specifications | 0.136 in Dia Maximum Insulation, 0.31 in Clearance, Nylon Insulation |
| Stud Size | 1/4 in |
| Conductor Size | 22 to 16 AWG |
| Tongue Size | 0.46 in W x 0.03 in THK |
| Length | 1.1 in |
| Series | RA Series |
| Material | Copper |
| Finish | Tin Coated |
| Temperature Rating | 105 deg C |
| BABA Compliant | No |
| Sold as | EACH |
