Description

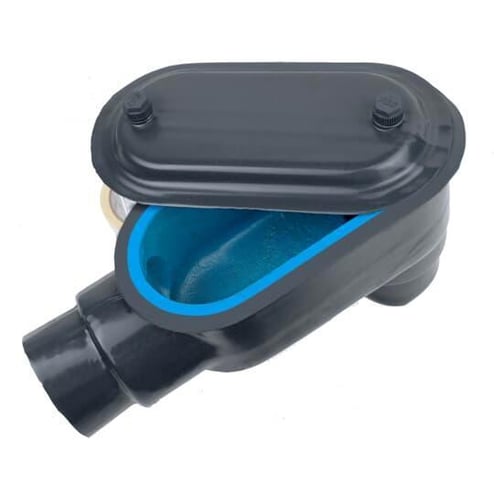

Ocal OCAL-BLUE Conduit Body, Type LB, 2 in Hub, 2 Hubs, 21 cu-in Capacity, Form 7 Form, Thread Connection, Aluminum, PVC Coated, Dark Gray, 8.3 in L x 3.1 in W x 4.45 in H Dimensions
With outstanding performance in corrosive environments, Ocal? PVC coated conduit and fittings extend the life of your electrical system for many years beyond the lifespan of standard rigid conduit systems. T&B? has removed certain "Only Ocal?" statements from its literature and advertising as part of the settlement of a lawsuit.
Features
- The conduit body and cover are double coated with a nominal 0.002 in blue urethane on both the interior and exterior, before PVC coating is applied
- A minimum of 0.04 in PVC coating is bonded to the exterior
- Covers are coated with a molded flange to seal the conduit body while the conduit body is molded with a flat surface on its opening to seal with the cover
- Ocal® Pressure sealing sleeves on all threaded hubs
- Ocal® conduit bodies are shipped with a cover and encapsulated stainless steel screws
- Bodies are designed with a flat back, allowing more cubic inch capacity
- The flat back also keeps the body more stable during installation, requiring fewer conduit straps
- Provide openings for making splices and taps in conductors
- Connect conduit sections
- Provide taps for branch conduit runs
- Make 90 deg bends in conduit runs
- Provide for access to conductors for maintenance and future system changes
Specifications
GTIN: 00704508390822
UNSPSC: 39131708
Discontinued Manufacturer Part Number: 7TAA087810R0010
Country of Origin: United States of America (the)
| Color | Dark Gray |
|---|---|
| Form | Form 7 |
| Dimensions | 8.3 in L x 3.1 in W x 4.45 in H |
| Number of Hubs | 2 |
| Connection Type | Thread |
| Material | Aluminum |
| Finish | PVC Coated |
| Capacity | 21 cu-in |
| BABA Compliant | No |
| Hub Size | 2 in |
| Width | 11.8 in |
| Type | Type LB |
| Sold as | EACH |
