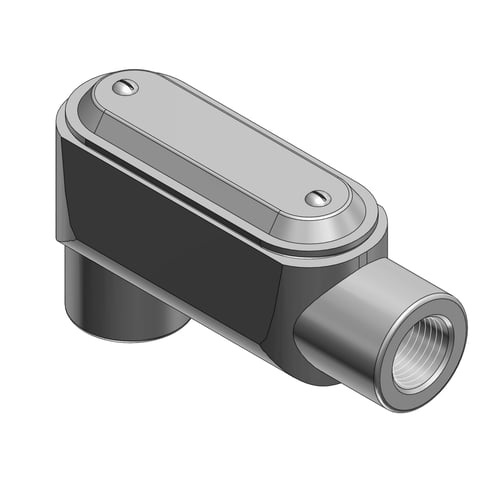

T&B BlueKote LB27CG-TB Type LB Pre-Assembled Conduit Body With Cover, Gasket, 3/4 in Hub, Form 7 Form, 6.6 cu-in Capacity, Gray Iron, Epoxy Powder Coated/Zinc Plated
T&B BlueKote LB27CG-TB Type LB Pre-Assembled Conduit Body With Cover, Gasket, 3/4 in Hub, Form 7 Form, 6.6 cu-in Capacity, Gray Iron, Epoxy Powder Coated/Zinc Plated
MPN LB27CG-TB
ASPN TNBLB27CGTB
UPC 786210916682
Description
Features
- Bluekote teflon based internal finish provides a slick, easy glide internal surface which significantly lowers the amount of force necessary to pull wires
- Eliminates rough internal surfaces that can cut into cable jacket, insulation and conductors during pulling and also reduces installation time and risk of installer strain
- Triple layer protection including two layers of epoxy coating which stops corrosion in its tracks
- Bodies are designed with a flat back, allowing more cubic inch capacity
- Conduit bodies make 90 deg bends in conduit runs, act as mounting outlets for wiring devices and lighting fixtures and to provide access to conductors for maintenance and future system changes
- Connect conduit sections
- Act as pull outlets when conductors are being installed and provide easy access for splices in branch conductors
Specifications
| Form | Form 7 |
|---|---|
| Number of Hubs | 2 |
| Connection Type | Tapered NPT |
| Hub Size | 3/4 in |
| Finish | Epoxy Powder Coated/Zinc Plated |
| BABA Compliant | No |
| Dimensions | 5.25 in L x 1.65 in W x 2.4 in H |
| Type | Type LB Pre-Assembled |
| Capacity | 6.6 cu-in |
| Material | Gray Iron |
| Sold as |
