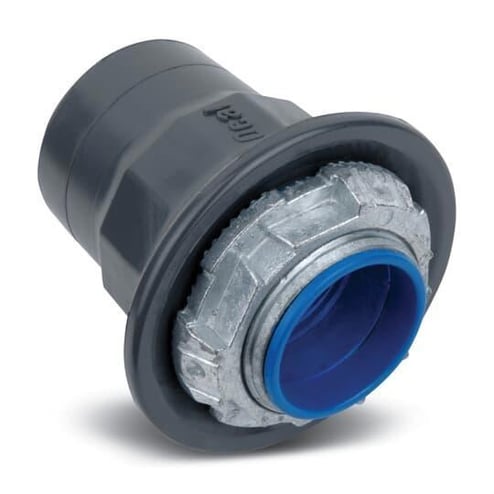

Ocal® Ocal-Blue™ HUB11/4-G Knockout Hub Connector With Thermoplastic Insulated Throat, 1-1/4 in, For Use With Conduit Body and Fitting, Zinc, PVC Coated


Description

Ocal® Ocal-Blue™ Knockout Hub Connector, 1-1/4 in Size, For Use With: Conduit Body and Fitting, Zinc, Dark Gray, PVC Coated, 2.38 in OD x 1.88 in H Dimensions

With outstanding performance in corrosive environments, Ocal? PVC coated conduit and fittings extend the life of your electrical system for many years beyond the lifespan of standard rigid conduit systems. T&B? has removed certain "Only Ocal" statements from its literature and advertising as part of the settlement of a lawsuit.

Features

  • Captive sealing ring won't buckle or slip during installation and provides a complete 360 deg seal even when conduit isn't perpendicular to the enclosure
  • Hexagonal/splined body and locknut enables fast and easy installation
  • Sharper and deeper teeth provide a more penetrating bite for improved bonding to the enclosure
  • Zinc or copper-free aluminum with a nominal 0.04 in PVC coating bonded to exterior - in blue, white, gray or custom colors
  • Pressure sealing sleeves protect connections
  • Nitrile (Buna-N) sealing ring
  • 1.31 in dia throat
  • 1/4 in THK maximum panel
  • 105 deg C temperature
  • 1-1/4 in pipe

Specifications

GTIN: 00704508388317

UNSPSC: 39121311

Country of Origin: United States of America (the)

Suitable For Use With
Conduit Body and Fitting
Color
Dark Gray
Size
1-1/4 in
Weight
2.3 lbs
Dimensions
2.38 in OD x 1.88 in H
Material
Zinc
Volume
0
Finish
PVC Coated
BABA Compliant
No
Sold as
EACH
