Description

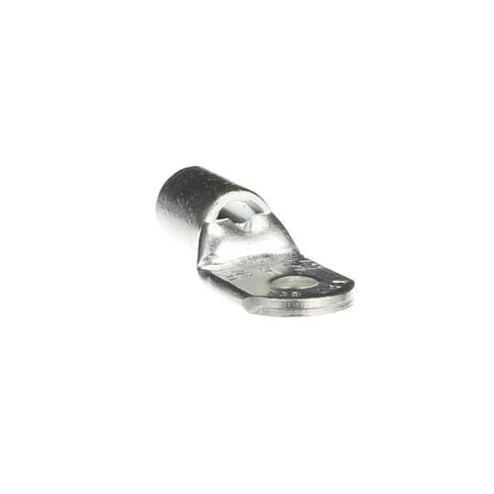

Sta-Kon® Ring Terminal, Non-Insulated, Series: H Series, 1 AN to 1/0 AWG Conductor, 1/4 in Stud, 1.65 in Length, Tubular Barrel, Ring Tongue, 0.77 in W x 0.05 in THK Tongue, 600 VAC, 0.43 in Clearance, 150 deg C, Copper, Tin Coated, Metallic
Sta-Kon? wire terminals offer more copper and a wider funnel to assure premium connection with less work in a line that includes insulated and non-insulated terminals, splices, wire joints, disconnects, ferrules, heat shrinkable terminals, splices and disconnects.
Features
- Non-insulated ring terminals are made of electrolytic copper for high conductivity/corrosion resistance
- Can be installed with crimping tools having a single indenter or double indenter (recommended for solid wire)
- Serrated barrel to increases grip-on wire
- 100 pieces/pack
Specifications
GTIN: 00786210815183
UNSPSC: 39121432
Country of Origin: Mexico
| Barrel Type | Tubular |
|---|---|
| Voltage Rating | 600 VAC |
| Weight | 95.9 lbs |
| Stud Size | 1/4 in |
| Length | 1.65 in |
| Series | H Series |
| Material | Copper |
| Finish | Tin Coated |
| BABA Compliant | No |
| Temperature Rating | 150 deg C |
| Tongue Size | 0.77 in W x 0.05 in THK |
| Conductor Size | 1 AN to 1/0 AWG |
| Specifications | 0.43 in Clearance |
| Tongue Type | Ring |
| Color | Metallic |
| Type | Non-Insulated |
| Sold as | EACH |
