Description

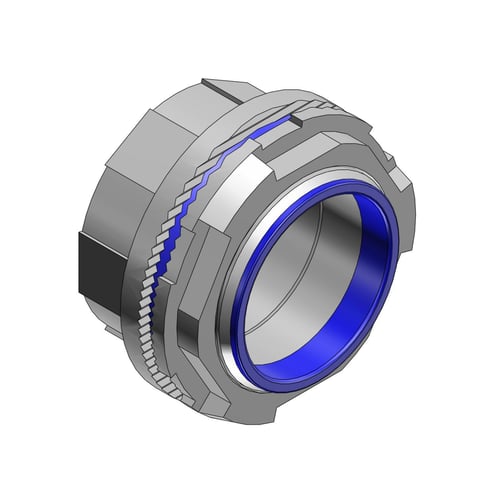

T&B® Hub Connector, 1-1/2 in, For Use With: Rigid/IMC Conduits, Zinc, 2-3/4 in W x 1-7/8 in H
For over 100 years the T&B? brand has been recognized as the leading brand of electrical fittings. Industry standards such as Liquidtight? fittings, Erickson? couplings and many others are registered trade marks. The innovation continues with numerous products and features for both ordinary and hazardous locations.
Features
- Sealing ring and groove with innovative profile better than standard O-ring
- Sealing ring is captive before installation and resists buckling or slipping during installation
- The seal groove is designed for optimum compression of the sealing ring
- The sealing ring is designed to provide a complete 360 deg seal, even when the conduit is not perpendicular with the enclosure
- Locknut design with peripheral slots and a hexagonal/angled spline spaced every 30 deg enables easy application of torque with wrench or hammer and screwdriver
- Sharper and deeper teeth on locknut and body designed for a more penetrating bite for improved bonding to the enclosure
- Hexagonal/splined body design for fast, easy installation with wrench or hammer and screwdriver
- Precision machined tapered threads designed to create watertight union
- Insulated throat molded from 105 deg C rated thermoplastic with a flammability rating of 94V-O
- Nitrile (Buna N) sealing ring
- 1-17/32 in dia throat
- 1/4 in THK maximum panel
- 105 deg C temperature
Specifications
GTIN: 00786210504049
UNSPSC: 39121311
Country of Origin: Canada
| Suitable For Use With | Rigid/IMC Conduits |
|---|---|
| Size | 1-1/2 in |
| Weight | 9.5 lbs |
| Material | Zinc |
| Volume | 0 |
| BABA Compliant | No |
| Dimensions | 2-3/4 in W x 1-7/8 in H |
| Sold as | EACH |
