Description

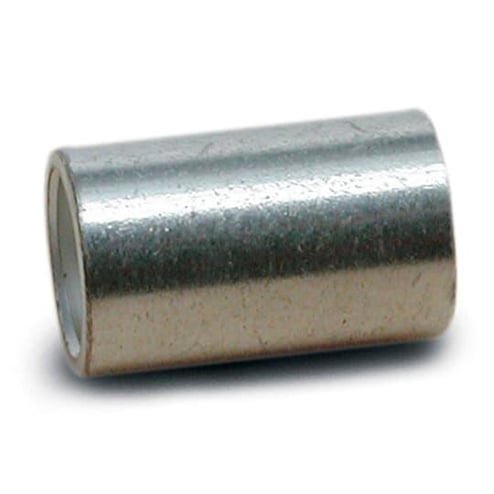

Sta-Kon® Splice Connector, Non-Insulated Parallel, Series: G Series, 2 AWG Conductor, 0.521 in OD Barrel, 0.64 in Length, 41/64 in Wire Strip Length, 600 VAC, 150 deg C, Copper, Metallic, Tin Coated, 0.396 in ID Dimensions
Sta-Kon? parallel splices offer solutions for hundreds of OEM, utility and communications applications. These splices provide excellent reliability, long-term performance, and a UL listed connection at a low installed cost. Sta-Kon? parallel splices are resistant to corrosion and preserve the electrical integrity of the wires in single or multiple strands. The new Sta-Kon? parallel splices also feature an intelligent constructible part number for quick identify cation of the wire range and pack quantity.
Features
- Resistant to corrosion and preserve the electrical integrity of the wires in single or multiple strands
- Feature an intelligent constructible part number for quick identification of the wire range
- Application tool WT115A, TBM8750M1, TBM8750BSCR
- 52600 to 83700 kcmil circular mil range
Specifications
GTIN: 00786210890845
UNSPSC: 39121449
Discontinued Manufacturer Part Number: 7TAI029620R0092
Country of Origin: Mexico
| Type | Non-Insulated Parallel |
|---|---|
| Color | Metallic |
| Voltage Rating | 600 VAC |
| Wire Strip Length | 41/64 in |
| Weight | 17.6 lbs |
| Conductor Size | 2 AWG |
| Barrel Outer Diameter | 0.521 in |
| Dimensions | 0.396 in ID |
| Length | 0.64 in |
| Series | G Series |
| Material | Copper |
| Finish | Tin Coated |
| Temperature Rating | 150 deg C |
| BABA Compliant | No |
| Sold as | EACH |
