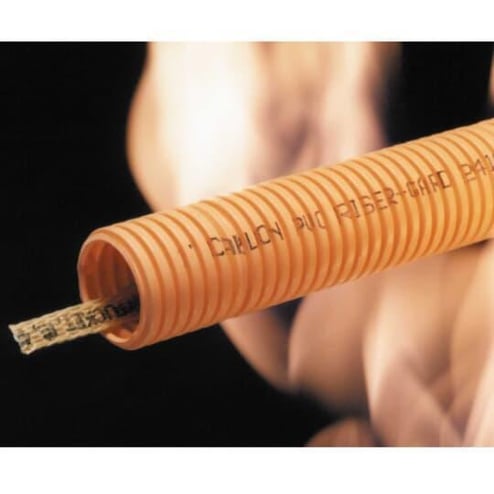

Carlon® Riser-Gard® DJ4X1C-2800 Non-Metallic Standard Wall Corrugated Raceway Conduit With Pull Line Tape, 2 in Trade, 2 in ID x 2.38 in OD, 2800 ft L, PVC


Description

Carlon® Riser-Gard® Corrugated Raceway Conduit, Non-Metallic Standard Wall, 2 in, 2 in Inside Dia, 2.38 in Outside Dia, 2800 ft Length, 0.08 in Thickness, 12 in Bend Radius, Flexible Flexibility, -4 to 104 deg F, PVC, Orange

Riser-Gard™ is a non-metallic flexible raceway for use in riser and general purpose applications. Riser-Gard™ is available with tape pre-installed. Riser-Gard™ is listed for Riser applications or optical fiber/telecommunication raceways. Riser-Gard™ is listed for riser, general purpose and other cabling optical fiber/telecommunication applications. Riser-Gard™ is suitable for use in vertical runs in shaft or between floors, as well as areas other than the plenum.

Features

  • Riser-Gard™ is also suitable for direct burial
  • Not approved for exposed applications
  • Pull tape can be factory pre-installed in 1 through 3 in
  • Outside diameters meet IPS dimensions
  • Footage sequentially marked

Specifications

GTIN: 00791207350134

UNSPSC: 39131706

Country of Origin: United States of America (the)

Outside Diameter
2.38 in
Color
Orange
Inside Diameter
2 in
Trade Size
2 in
Flexibility
Flexible
Length
2800 ft
Thickness
0.08 in
Material
PVC
Temperature Rating
-4 to 104 deg F
Bend Radius
12 in
BABA Compliant
No
Type
Non-Metallic Standard Wall
Sold as
EACH
