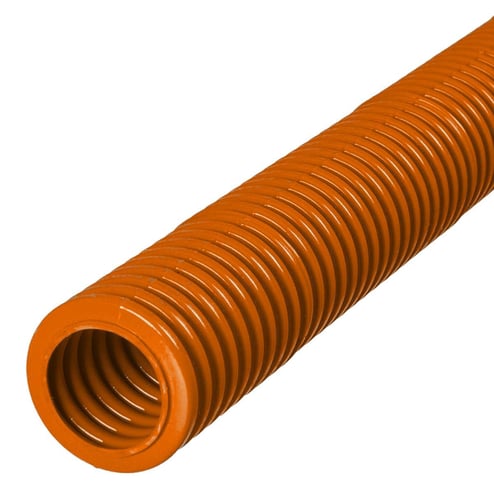

Carlon Plenum-Gard CH4X1C-1200 Corrugated Non-Metallic Standard Wall Flexible Conduit With Pull Line Tape, 1-1/2 in Trade, 1-1/2 in ID x 1.88 in OD, 1200 ft L, PVDF
Carlon Plenum-Gard CH4X1C-1200 Corrugated Non-Metallic Standard Wall Flexible Conduit With Pull Line Tape, 1-1/2 in Trade, 1-1/2 in ID x 1.88 in OD, 1200 ft L, PVDF
MPN CH4X1C-1200
ASPN TNBCH4X1C1200
UPC 791207203652
Description
Features
- Pull tape can be factory pre-installed in 1 through 3 in
- Outside diameters meet IPS dimensions
- Footage sequentially marked
- Manufactured from PVDF resin which is extremely durable and-resistant to abrasion and mechanical damage before/after cable installation
Specifications
Country of Origin: United States of America (the)
| Color | Orange |
|---|---|
| Inside Diameter | 1-1/2 in |
| Trade Size | 1-1/2 in |
| Thickness | 0.01/0.03 in |
| Material | PVDF |
| Bend Radius | 4 in |
| BABA Compliant | No |
| Temperature Rating | -4 to 104 deg F |
| Length | 1200 ft |
| Outside Diameter | 1.88 in |
| Type | Corrugated Non-Metallic Standard Wall |
| Sold as |
