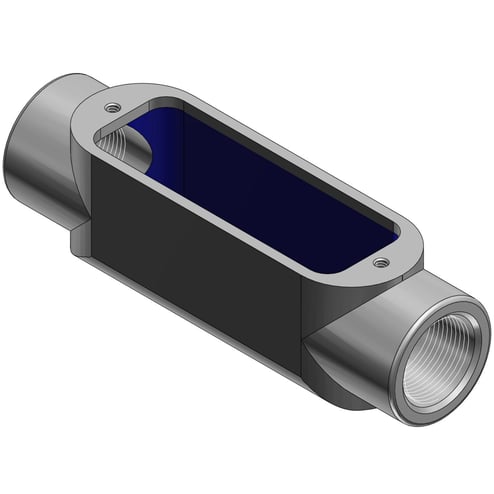

T&B® BlueKote® C18 Type C Conduit Body, 1/2 in Hub, Form 8 Form, 4.9 cu-in Capacity, Malleable Iron, Epoxy Powder Coated/Zinc Plated


Description

T&B® BlueKote® Conduit Body, Type C, 1/2 in Hub, 2 Hubs, 4.9 cu-in Capacity, Form 8, Tapered/NPT, Malleable Iron, Epoxy Powder Coated/Zinc Plated, Gray, 5-11/16 in L x 1-3/8 in W x 1-7/16 in H

For over 100 years the T&B® brand has been recognized as the leading brand of electrical fittings. industry standards such as Liquidtight® fittings, Erickson® couplings and many others are registered trade marks. The innovation continues with numerous products and features for both ordinary and hazardous locations.

Features

  • Bluekote® Teflon based internal finish provides a slick, easy glide internal surface which significantly lowers the amount of force necessary to pull wires
  • Eliminates rough internal surfaces that can cut into cable jacket, insulation and conductors during pulling and also reduces installation time and risk of installer strain
  • Triple layer protection including two layers of epoxy coating which stops corrosion in its tracks
  • Bodies are designed with a flat back, allowing more cubic inch capacity
  • Thru feed design

Specifications

GTIN: 00786210165325

UNSPSC: 39131708

Discontinued Manufacturer Part Number: 7TAD013270R0000

Country of Origin: China

Type
Type-C
Color
Gray
Form
Form 8
Dimensions
5-11/16 in L x 1-3/8 in W x 1-7/16 in H
Number of Hubs
2
Connection Type
Tapered NPT
Hub Size
1/2 in
Material
Malleable Iron
Finish
Epoxy Powder Coated/Zinc Plated
Capacity
4.9 cu-in
BABA Compliant
No
Width
14 in
Sold as
EACH
