Description

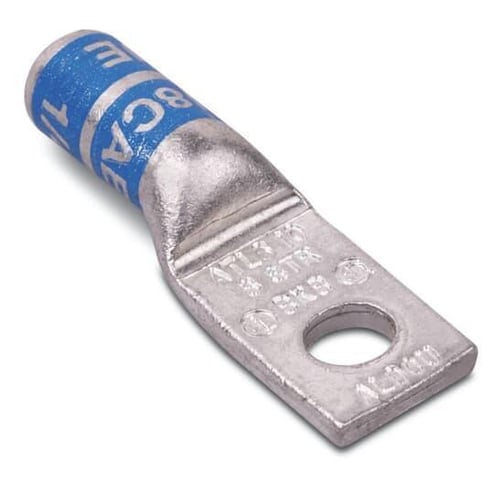

Color-Keyed® Compression Lug, 1-Hole, Series: ATL, Stranded Aluminum/Copper Conductor, 6 AWG Conductor, 35 kV, 1/4 in Stud, Straight Tongue, 23/32 in L x 15/32 in W x 1/8 in THK Tongue, 1-21/32 in Overall Length, Standard Barrel, 25/32 in L Barrel, Specifications: Tin Plated, Aluminum, Gray
Blackburn® is a complete and reliable line of overhead, grounding, mechanical and compression connectors that respond to a broad range of construction needs.
Features
- Specifically designed for use with aluminum conductors (concentric, compressed or compact)
- Also listed for use with copper conductors
- Made of high conductivity seamless aluminum tubing
- Chamfered barrels for ease of installation
- Can be used for medium voltage application up to 35 kV provided proper insulation techniques are used
- Color coded for quick, easy die identification
- Prefilled with oxide-inhibitor
- Tin plated for corrosion-resistance
Specifications
GTIN: 00783786610891
UNSPSC: 39121405
Alternative Part Number: 7TAH007610R0097, 10764700
Discontinued Manufacturer Part Number: 7TAH007610R0097
Country of Origin: Mexico
| Type | 1-Hole |
|---|---|
| Color | Gray |
| Tongue Type | Straight |
| Barrel Type | Standard |
| Voltage Rating | 35 kV |
| Specifications | Tin Plated |
| Stud Size | 1/4 in |
| Conductor Size | 6 AWG |
| Tongue Size | 23/32 in L x 15/32 in W x 1/8 in THK |
| Material | Aluminum |
| BABA Compliant | No |
| Barrel Size | 25/32 in L |
| Overall Length | 1-21/32 in |
| Conductor Type | Stranded Aluminum/Copper |
| Series | ATL |
| Sold as | EACH |
