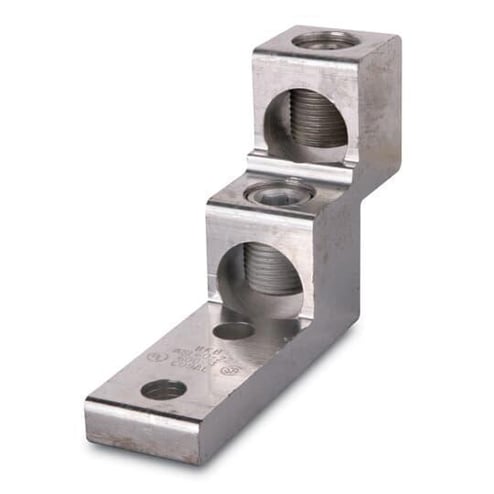

Blackburn® ASL60-22 Type ASL-ALCUL Dual Rated Mechanical Connector, 2 AWG to 600 kcmil AluminumStranded Copper Conductor, 1332 in Stud, 2 Bolt Holes, Aluminum


Description

Blackburn® Mechanical Connector, Type ASL-ALCUL Dual Rated, Aluminum/Stranded Copper Conductor, 2 AWG to 600 kcmil Conductor, 13/32 in Stud, 2 Bolt Holes, 1-1/2 in W x 3/8 in THK Tongue, Straight Tongue, Specifications: 2-Conductor, Aluminum, Tin Plated, 4-29/32 in L x 1-1/2 in W x 3 in H Dimensions

Blackburn® cast, forged or formed mechanical connections, produced in economical copper and dual-rated aluminum, provide unequaled variety with a large variety of UL and CSA certified solutions for your electrical interface needs.

Features

  • Easy installation - no special tools required
  • Tin plated for low contact resistance
  • 2 stud of 13/32 in

Specifications

GTIN: 00783786133154

UNSPSC: 39121408

Discontinued Manufacturer Part Number: 7TAH006610R0011

Country of Origin: Mexico

Type
Type ASL-ALCUL Dual Rated
Tongue Type
Straight
Conductor Type
Aluminum/Stranded Copper
Specifications
2-Conductor
Stud Size
13/32 in
Conductor Size
2 AWG to 600 kcmil
Tongue Size
1-1/2 in W x 3/8 in THK
Dimensions
4-29/32 in L x 1-1/2 in W x 3 in H
Material
Aluminum
Finish
Tin Plated
Number of Bolt Holes
2
BABA Compliant
No
Sold as
EACH
