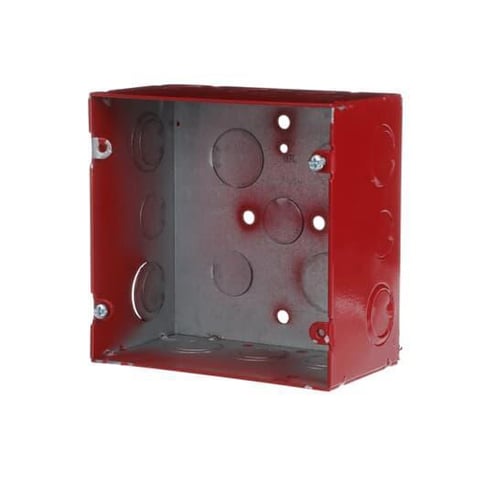

Steel City® 5 SQUARE® 82181-1234-RD Fire Signal Box, Steel, 64 cu-in Capacity, 1 Outlet, 17 Knockouts, 5 in W x 2-7/8 in D x 5 in H
Steel City® 5 SQUARE® 82181-1234-RD Fire Signal Box, Steel, 64 cu-in Capacity, 1 Outlet, 17 Knockouts, 5 in W x 2-7/8 in D x 5 in H
MPN 82181-1234-RD
ASPN TNB821811234RD
UPC 785991072112
Description
Features
- Integrated cable management posts prevent kinked and over bent cables to help ensure proper data transmission
- BICSI® recommended slack cable loop eliminates the need for a second technician in a remote location to assist in pulling the cable-out of the box for connector termination
- Increase capacity, save labor and reduce troubleshooting
- Save up to 50% in labor
- Eliminate the need to remove ceiling tiles to access the slack cable loop, preventing damage and debris
- (1) 1/2 in, (2) 3/4 in side and (3) 1/2 in, (2) 3/4 in back knockouts
- Twice the volume as standard electrical boxes
- Fully upgradeable system
- 5 SQUARE boxes offer more than double the cubic-inch capacity of a standard 4 in.-square deep box, making it faster and easier to route wiring and make terminations in the box.
- Save labor turn a two-man job into a one-man job by storing the slack cable loop in the box for easy access by a single technician when terminating communications cables.
- The extra room in the 5 SQUARE box dramatically reduces the likelihood of ground faults and short circuits when installing large fire alarm devices.
Specifications
GTIN: 00785991072112
UNSPSC: 39121309
Country of Origin: China
| Color | Red |
|---|---|
| Shape | Square |
| Dimensions | 5 in W x 2-7/8 in D x 5 in H |
| Mounting Type | Ceiling |
| Number of Outlets | 1 |
| Material | Steel |
| Number of Knockouts | 17 |
| Knockout Size | 1/2 in, 3/4 in |
| Volume | 0 |
| Finish | Pre-Galvanized |
| Capacity | 64 cu-in |
| BABA Compliant | No |
| Sold as | 20/PK |
