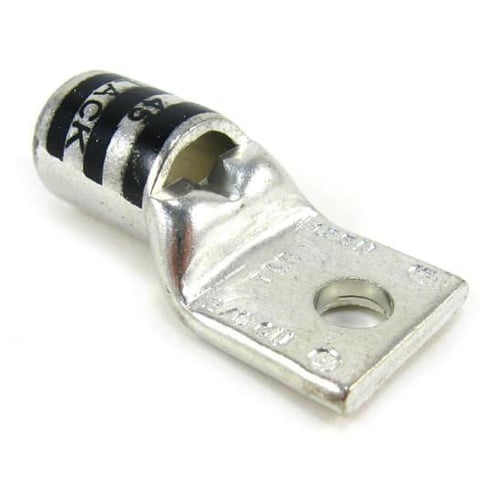

Color-Keyed® 54158T 54100 1-Hole Non-Insulated Compression Lug With Peep Hole, 20 AWG Copper Conductor, Die Code: 45, 516 in Stud, Copper


Description

Color-Keyed® Compression Lug, 1-Hole Non-Insulated, Series: 54100, Copper Conductor, 2/0 AWG Conductor, Die Code: 45, 600 V to 35 kV, 5/16 in Stud, Straight/Top Stacking Tongue, Standard Barrel, 0.57 in Dia Barrel, Specifications: Tin Plated, 0.344 in Mounting Hole, Copper, Black

The Color-Keyed® compression system ensures a proper crimp onto the conductor by matching the right connector to the right tool and die, using a color coding system that was developed and introduced to the industry by Thomas & Betts. When using the Color-Keyed® compression system with our Blackburn® line of compression connectors, the installer can count on a reliable, high quality connection.

Features

  • Peep hole
  • Top stacking
  • High conductivity wrought copper construction

Specifications

GTIN: 00786210378411

UNSPSC: 39121405

Country of Origin: Mexico

Color
Black
Conductor Type
Copper
Stud Size
5/16 in
Conductor Size
2/0 AWG
Material
Copper
Mounting Hole Size
0.344 in
BABA Compliant
No
Die Code
45
Series
54100
Specifications
Tin Plated
Voltage Rating
600 V to 35 kV
Barrel Type
Standard
Tongue Type
Straight/Top Stacking
Barrel Size
0.57 in Dia
Type
1-Hole Non-Insulated
Sold as
EACH
