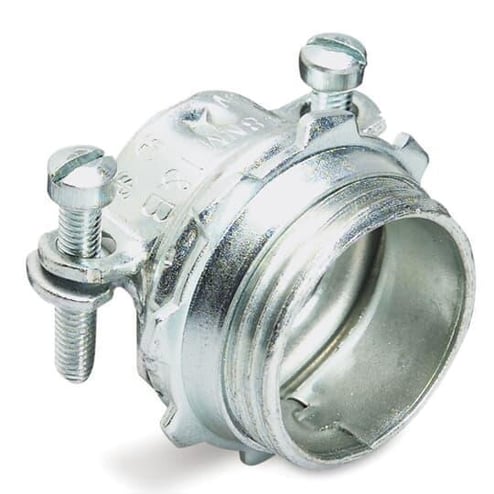

T&B 3308 2-Screw Non-Insulated Cable Connector With Slotted Screw, 2-1/2 in Trade, 1.15 to 1.98 in Cable Openings, Malleable Iron, Electro-Zinc Plated


Description

T&B Cable Connector, 2-Screw Non-Insulated, 2-1/2 in, Cable Openings: 1.15 to 1.98 in, Flex/Non-Metallic Sheathed Cable, Straight, Malleable Iron, Electro-Zinc Plated, Metallic, 1-29/32 in L x 3-5/16 in W x 2-25/32 in H

For over 100 years the T&B? brand has been recognized as the leading brand of electrical fittings. Industry standards such as Liquidtight? fittings, Erickson? couplings and many others are registered trade marks. The innovation continues with numerous products and features for both ordinary and hazardous locations.

Features

  • Rounded cable grip and smooth bushing protect the cable sheath and wire insulation
  • Since saddle is threaded, screws do not travel or extend beyond the connector body as it is clamped to the cable
  • An extra lip on the saddle closes the unused part of the connector opening
  • Nylon insulated
  • Non-metallic service entrance cable
  • 1 in knockout
  • Nylon non-insulated

Specifications

GTIN: 00786210033082

UNSPSC: 39121419

Discontinued Manufacturer Part Number: 7TAA106080R0008

Country of Origin: United States of America (the)

Type
2-Screw Non-Insulated
Color
Metallic
Width
0 in
Trade Size
2-1/2 in
Cable Type
Flex/Non-Metallic Sheathed
Material
Malleable Iron
Finish
Electro-Zinc Plated
BABA Compliant
No
Connection Type
Straight
Dimensions
1-29/32 in L x 3-5/16 in W x 2-25/32 in H
Cable Openings
1.15 to 1.98 in
Weight
7.3 lbs
Sold as
BOX
