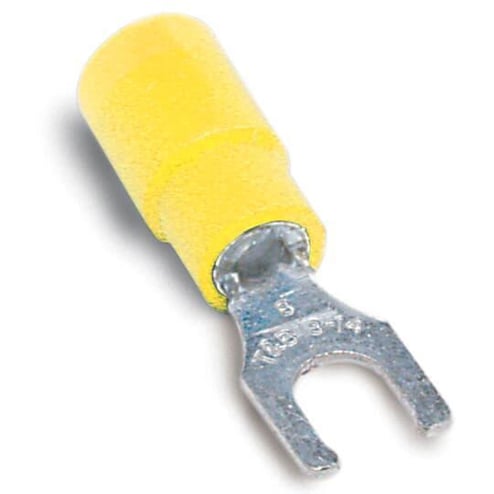

Sta-Kon® 10RC-10FLX RC Series Expanded Insulated Fork Terminal, 12 to 10 AWG Conductor, 1.1 in L, Brazed Seam/Serrated Barrel, Copper, Yellow
Sta-Kon® 10RC-10FLX RC Series Expanded Insulated Fork Terminal, 12 to 10 AWG Conductor, 1.1 in L, Brazed Seam/Serrated Barrel, Copper, Yellow
MPN 10RC-10FLX
ASPN TNB10RC10FLX
UPC 786210807270
Description
Features
- Locking fork terminals have a specially designed tongue that lets them go on like a fork and stay on like a ring
- Brazed seam barrel is serrated for high pull-out value
- Insulation is Color coded
- WT112M, WT145C, WT2000, ERG4001, ERG4003 recommended tools
Specifications
GTIN: 00786210807270
UNSPSC: 39121432
Discontinued Manufacturer Part Number: 7TAI029460R0001
Country of Origin: United States of America (the)
| Type | Expanded Insulated |
|---|---|
| Color | Yellow |
| Tongue Type | Locking Fork |
| Barrel Type | Brazed Seam/Serrated |
| Voltage Rating | 600 VAC |
| Weight | 0.7 lbs |
| Specifications | 1/4 in Dia Maximum Insulation, 0.27 in Clearance, Vinyl Insulation |
| Stud Size | #10 |
| Conductor Size | 12 to 10 AWG |
| Tongue Size | 0.37 in W x 0.04 in THK |
| Length | 1.1 in |
| Series | RC Series |
| Material | Copper |
| Finish | Electroplated Tin |
| Temperature Rating | 105 deg C |
| BABA Compliant | No |
| Sold as | EACH |
