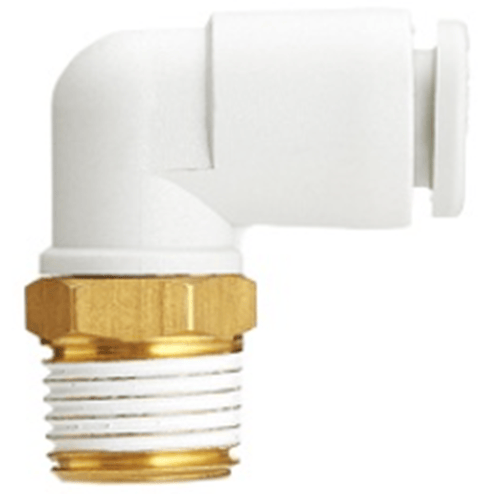

SMC KQ2L04-01AS KQ2 Sealant One-Touch Fittings, 4 mm x R1/8 Nominal, Push-In x BSPT End Style, Brass
SMC KQ2L04-01AS KQ2 Sealant One-Touch Fittings, 4 mm x R1/8 Nominal, Push-In x BSPT End Style, Brass
MPN KQ2L04-01AS
ASPN SMCKQ2L0401AS
Description
Specifications
| Color | White/Light Gray |
|---|---|
| End Style | Push-In x BSPT |
| Fitting/Connector Type | Elbow |
| Series | KQ2 |
| Pressure Rating | -100 kPa to 1 MPa |
| Hex Size | 10 mm |
| Material | Brass |
| Temperature Rating | -5 to 60 deg C |
| Nominal Size | 4 mm x R1/8 |
| BABA Compliant | No |
| Type | Sealant |
| Sold as |
