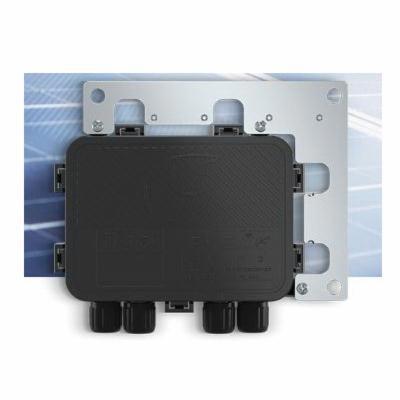

SMA TS4-R-O Solar Power Optimizer Module With a Retrofit/Add-On Base, 75 VAC Input, 0 to 75 VAC Output, -40 to 167 deg F Operating


Description

SMA Solar Power Optimizer Module, 75 VAC Maximum Input, 0 to 75 VAC Maximum Output, -40 to 167 deg F Operating, 1000 VDC Allowed System, MC-4 Connector, IP65/IP67/NEMA 3R Protection, PV1-F Wire, 1 m Wire Length, 7.7 in L x 6.2 in W x 9 in H Dimensions

With this innovative module technology from SMA, for the first time a system's individual PV modules can be strategically optimized, easily and cost effectively. The TS4-R module system is a cost effective system that fits into any PV module design, making it the right solution for every application. With the TS4-R platform, for the first time, every PV module can now be flexibly equipped with an additional function. Only the modules affected by energy yield loss are equipped/fitted with TS4-R this means energy yields can be strategically increased and system costs reduced.

Features

  • Complete module level monitoring
  • Module level shutdown
  • Optimization for complex roof structure and partial shading

Specifications

UNSPSC: 32121705

Maximum Input Voltage
75 VAC
Wire Type
PV1-F
Wire Length
1 m
Dimensions
7.7 in L x 6.2 in W x 9 in H
Maximum Output Voltage
0 to 75 VAC
Allowed System Voltage
1000 VDC
Protection Rating
IP65/IP67/NEMA 3R
BABA Compliant
No
Connector Type
MC4
Operating Temperature
-40 to 167 deg F
Sold as
