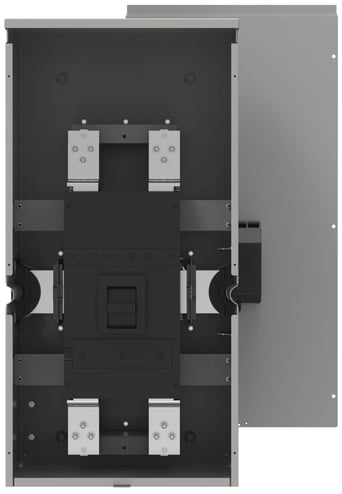

Siemens Power Mod™ WXB1800NU Type WXB Insulated Low Voltage Thru Bus Sub Feed Cross Bus Main Module, 120/240 VAC, 800 A, 1 Phase


Description

Siemens Power Mod™ Cross Bus Main Module, Type WXB Insulated Low Voltage Thru Bus Sub Feed, 120/240 VAC, 800 A, 1 ph, MXD6 Frame, Shunt Trip, 100 kA Interrupt, NEMA 3R Enclosure, Handle Actuator, Quick-Connect Connection, G90 Galvanized Steel, 36.05 in H x 18.13 in W x 12.63 in D Dimensions

Cross bus main modules (type WXB) offer two distinct functions, first they can be used to connect Siemens Sentron™ busway to a power Mod™ line-up. Second they can be utilized to offer lower service disconnect ampacities or unique configurations where an incoming tapbox is preferred.

Features

  • QuickSystem™ features
  • Incoming and outgoing bus connections (right to left or left to right)
  • Standardized connection points to Siemens Sentron™ busway
  • Externally accessible breaker handle with padlock capability
  • Field installable shunt trips
  • Without lugs and not service entrance rated

Specifications

GTIN: 00887621031961

UNSPSC: 39121102

Country of Origin: United States of America (the)

Type
Type WXB Insulated Low Voltage Thru Bus Sub Feed
Trip Type
Shunt
Interrupt Rating
100 kA
Voltage Rating
120/240 V AC
Actuator Type
Handle
Weight
8 lbs
Width
2.4 in
Enclosure Type
NEMA 3R
Frame Type
MXD6
Dimensions
36.05 in H x 18.13 in W x 12.63 in D
Connection Type
Quick-Connect
Phase
1
Material
G90 Galvanized Steel
Amperage Rating
800 A
BABA Compliant
No
Sold as
EACH
