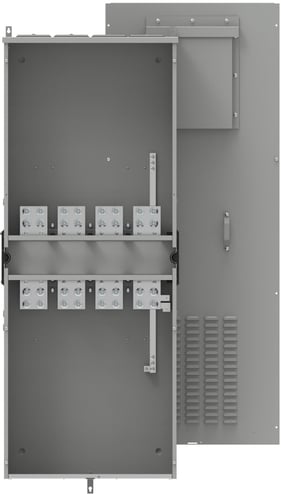

Siemens Power Mod™ WTBN31200CU Type WTBN 4-Wire ConEd Standard Tap Box Module, 240 VAC, 1200 A, 3 Phase, Bottom/Top Feed, NEMA 3R Enclosure
Siemens Power Mod™ WTBN31200CU Type WTBN 4-Wire ConEd Standard Tap Box Module, 240 VAC, 1200 A, 3 Phase, Bottom/Top Feed, NEMA 3R Enclosure
MPN WTBN31200CU
ASPN SIEWTBN31200CU
UPC 887621270834
Description
Features
- QuickSystem™ features
- Standard compression lug capability
- Invertibility - devices can be rotated to accommodate the desired incoming feed direction
- All swing latches and rivets are stainless steel
- Designed for versatility, space savings and flexibility
- Line and load capability - service entrance and sub feed rated
Specifications
GTIN: 00887621270834
UNSPSC: 39121102
Country of Origin: United States of America (the)
| Type | Type WTBN 4-Wire ConEd Standard |
|---|---|
| Voltage Rating | 240 V AC |
| Weight | 42 lbs |
| Width | 10.4 in |
| Feed Type | Bottom/Top |
| Enclosure Type | NEMA 3R |
| Short Circuit Current Rating | 100 kA |
| Phase | 3 |
| Material | G90 Galvanized Steel |
| Amperage Rating | 1200 A |
| BABA Compliant | No |
| Sold as | EACH |
