Description

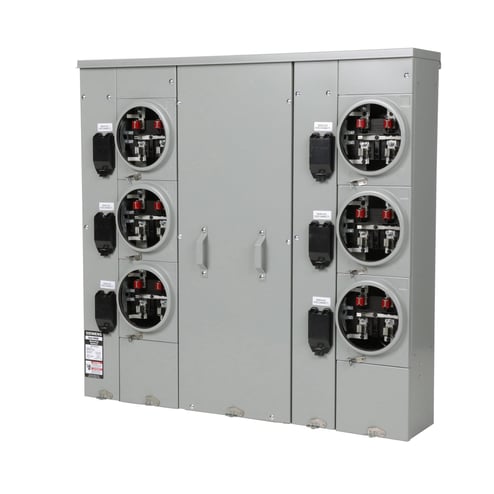

Siemens UNI-PAK Meter Socket, 6-Position, Series: WP Series, 120/240 VAC, 600 A, 1 ph, Bottom/Top Feed, 5 Jaws, 2 AWG to 600 kcmil Wire, Ringless Cover, Insulated Insulation, Surface Mounting, 38.69 in H x 40 in W x 8.63 in D Dimensions
Features
- Individual split covers with barrel lock compatibility
- Horn bypass factory installed
- Completely self-contained meter centers
- Compact, pre-bussed, easy to handle, hang and wire
- Barriered, sealable compartment for unmetered current carrying parts
- Aluminum/copper lay-in lugs, except two position 125 A units
- Bottom and rear branch wiring exits (neutral and ground at bottom only)
- ANSI no 61 light gray electro-deposited paint on zinc coated steel
- 5th jaw kit included
- 3-wire connection
- 125 A sockets feed plug in tenant breakers through 125 A
- 65 kA interrupt rating
- QP, QPH, HQP, MP-T, MP-HT, MP-MT breaker provision
Specifications
GTIN: 00040892875720
UNSPSC: 39121102
Country of Origin: United States of America (the)
| Type | 6-Position |
|---|---|
| Wire Size | 2 AWG to 600 kcmil |
| Voltage Rating | 120/240 V AC |
| Weight | 0 |
| Feed Type | Bottom/Top |
| Dimensions | 38.69 in H x 40 in W x 8.63 in D |
| Insulation | Insulated |
| Cover Type | Ringless |
| Mounting Type | Surface |
| Series | WP Series |
| Number of Jaws | 5 |
| Phase | 1 |
| Amperage Rating | 600 A |
| BABA Compliant | No |
| Sold as | EACH |
