Description

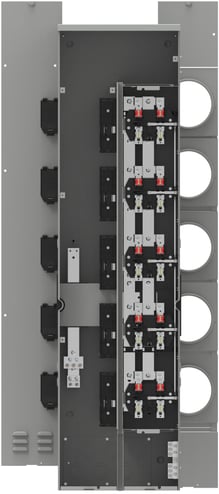

Siemens Power Mod™ Meter Stack, 6-Cutout 3-Wire Insulated, Series: WMM, Underground Feed, 120/240 VAC, 1200 A Bus, 225 A Socket, 5 Meter Sockets, 1, Ringless Socket Cover Style, 4 Socket Jaws, QP/MP-T/QPH/HQP/MP-HT/MP-MT/QS/QSH/QSHH/HQS/HQSH Breaker, NEMA 3R Enclosure, Rail Mounting, 61.313 in H x 16.094 in W x 8.094 in D
Power Mod™ core offering of residential meter Stacks, type WMM, offers the widest product offering and flexibility in the industry. Each meter stack houses the QuickSystem™ features to maximize productivity and minimize labor costs. To aid in productivity and labor cost reductions our 225 a meter stacks feature a new breaker - the "QS". The QS breaker adds to the Siemens exclusive feature set on our new 225 A residential meter stacks.
Features
- Exclusive knockout plate offers flexibility when pulling wires to the stack
- New breaker supports keep breakers level and straight
- Moveable neutrals and grounds to save wire
- QuickSystem™ features all designed with the contractor in mind
- 1-phase 3-wire solid neutral incoming and outgoing
- Without bypass
- Field installed 5th jaw ECMF5, 5th jaw can be isolated if needed
Specifications
GTIN: 00040892147896
UNSPSC: 39121102
Country of Origin: United States of America (the)
| Voltage Rating | 120/240 V AC |
|---|---|
| Weight | 2 lbs |
| Enclosure Type | NEMA 3R |
| Mounting Type | Rail |
| Bus Amps | 1200 A |
| Series | WMM |
| Phase | 1 |
| Socket Cover Style | Ringless |
| BABA Compliant | No |
| Socket Amps | 225 A |
| Dimensions | 61.313 in H x 16.094 in W x 8.094 in D |
| Number of Meter Sockets | 5 |
| Breaker Type | QP/MP-T/QPH/HQP/MP-HT/MP-MT/QS/QSH/QSHH/HQS/HQSH |
| Feed Type | Underground |
| Socket Jaws | 4 |
| Type | 6-Cutout 3-Wire Insulated |
| Sold as | EACH |
