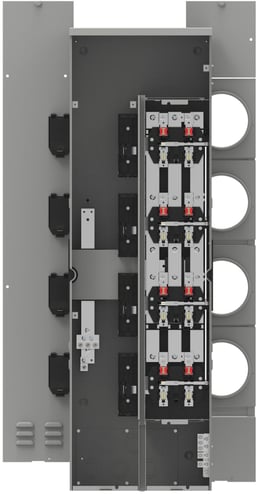

Siemens Power Mod™ WMM42225J 6-Cutout 3/4-Wire Extra Jaw Insulated Meter Stack, 225 A, Underground Feed, 120/208 VAC, 240/120 VAC, 1200 A Bus


Description

Siemens Power Mod™ Meter Stack, 6-Cutout 3/4-Wire Extra Jaw Insulated, Series: WMM, Underground Feed, 120/208 VAC, 240/120 VAC, 1200 A Bus, 225 A Socket, 4 Meter Sockets, 1/3, Ring Socket Cover Style, 5 Socket Jaws, QP/MP-T/QPH/HQP/MP-HT/MP-MT/QS/QSH/QSHH/HQS/HQSH Breaker, NEMA 3R Enclosure, Rail Mounting, 52.313 in H x 16.094 in W x 8.094 in D

Power Mod™ core offering of residential meter Stacks, type WMM, offers the widest product offering and flexibility in the industry. Each meter stack houses the QuickSystem™ features to maximize productivity and minimize labor costs. To aid in productivity and labor cost reductions our 225 a meter stacks feature a new breaker - the "QS". The QS breaker adds to the Siemens exclusive feature set on our new 225 A residential meter stacks.

Features

  • Exclusive knockout plate offers flexibility when pulling wires to the stack
  • New breaker supports keep breakers level and straight
  • Moveable neutrals and grounds to save wire
  • QuickSystem™ features all designed with the contractor in mind
  • 3-phases 4-wire solid neutral incoming and 1-phase 3-wire solid neutral outgoing

Specifications

GTIN: 00040892147476

UNSPSC: 39121102

Country of Origin: United States of America (the)

Type
6-Cutout 3/4-Wire Extra Jaw Insulated
Socket Jaws
5
Voltage Rating
120 to 208/240 to 120 V AC
Weight
0.6 lbs
Feed Type
Underground
Breaker Type
QP/MP-T/QPH/HQP/MP-HT/MP-MT/QS/QSH/QSHH/HQS/HQSH
Number of Meter Sockets
4
Enclosure Type
NEMA 3R
Dimensions
52.313 in H x 16.094 in W x 8.094 in D
Socket Amps
225 A
Mounting Type
Rail
Bus Amps
1200 A
Series
WMM
Phase
1/3
Socket Cover Style
Ring
BABA Compliant
No
Sold as
EACH
