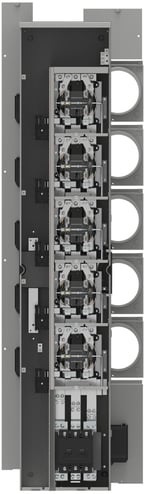

Siemens Power Mod™ WMLZF52125RJ 3/4-Wire Type WMLZF Fused Extra Jaw Insulated Utility Meter Stack With Lever Bypass, 125 A, 120/240 VAC, 1200 A Bus


Description

Siemens Power Mod™ Meter Stack, 3/4-Wire Type WMLZF Fused Extra Jaw Insulated Utility, 120/240 VAC, 1200 A Bus, 125 A Socket, 5 Meter Sockets, 1/3, Ringless Socket Cover Style, 5 Socket Jaws, HQP/MP-T/MP-HT/MP-MT/QP/QPH Breaker, NEMA 3R Enclosure, Rail Mounting, 74.06 in H x 14.61 in W x 11.51 in D

The WMLZ and WMLZF lever bypass meter stacks are designed to allow the use of class T (400 A max) fuses ahead of all meter positions where the local serving utility may require it. WMLZF stacks feature a 400 A fusible pull out assembly which connects to a secondary 400 A through bus that can feed downstream meter stacks. The WMLZ stacks include the secondary 400 A through bus that can connect from the WMLZF meter stacks. The standard power Mod™ 1200 A through bus passes through to feed downstream modules - the meter sockets in WMLZ and WMLZF do not connect directly to the 1200 A through bus - only to the 400 A through bus.

Features

  • QuickSystem™ features
  • High quality, time proven TALON® HQ sockets
  • Ease of wiring, tenant mains require only a single bend
  • Pre-configured and wired
  • Secondary 400 A thru bus to supply power to down stream sockets
  • 3-phase 4-wire solid neutral incoming and 1-phase 3-wire solid neutral outgoing

Specifications

GTIN: 00887621853228

UNSPSC: 39121102

Country of Origin: United States of America (the)

Socket Jaws
5
Voltage Rating
120/240 VAC
Width
3.7 in
Enclosure Type
NEMA 3R
Mounting Type
Rail
Bus Amps
1200 A
Phase
1/3
Socket Cover Style
Ringless
BABA Compliant
No
Socket Amps
125 A
Dimensions
74.06 in H x 14.61 in W x 11.51 in D
Number of Meter Sockets
5
Breaker Type
HQP/MP-T/MP-HT/MP-MT/QP/QPH
Type
3/4-Wire Type WMLZF Fused Extra Jaw Insulated Utility
Sold as
EACH
