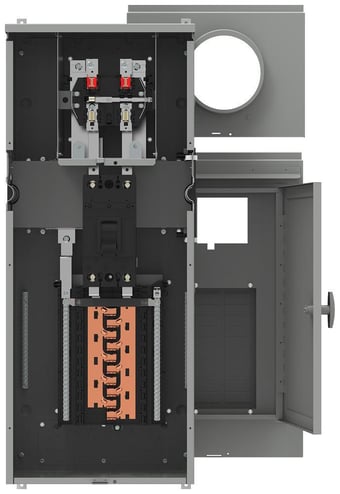

Siemens WC2040B1T1RJ WC Series Low Voltage Meter Loadcenter Stack Combination Power Module, 120/240 VAC, 225 A, 1 Phase, NEMA 3R Enclosure


Description

Siemens Combination Power Module, Low Voltage Meter Loadcenter Stack, Series: WC Series, 120/240 VAC, 225 A, 1 ph, Sub Feed/Thru Bus Feed, 5 Jaws, Ringless Cover, Quick-Connect Terminal, Insulated Insulation, Rail Mounting, NEMA 3R Enclosure

The meter load center combination offered by the WC series is unique and exclusive to the Siemens Power Mod family. This product offers the ability to combine house power applications with a meter socket thereby reducing material (pipe and wire) and installation time (separate load center or panel board).

Features

  • 20 spaces, 40 circuit interior 100 kA interrupt rated
  • Removable knock out plate
  • Load wire can exit out of the top, back or bottom
  • The line of WC house power modules allow for un-precedented flexibility and savings
  • Without bypass

Specifications

GTIN: 00887621056896

UNSPSC: 39121102

Country of Origin: United States of America (the)

Type
Low Voltage Meter Loadcenter Stack
Terminal Type
Quick-Connect
Voltage Rating
120/240 V AC
Width
4.1 in
Feed Type
Sub Feed/Thru Bus
Enclosure Type
NEMA 3R
Insulation
Insulated
Cover Type
Ringless
Mounting Type
Rail
Series
WC Series
Number of Jaws
5
Phase
1
Amperage Rating
225 A
BABA Compliant
No
Sold as
EACH
