Description

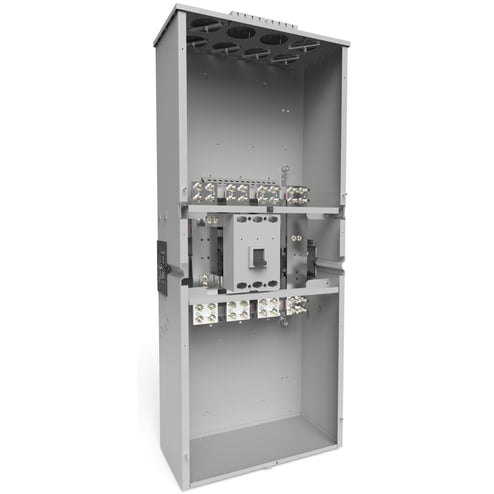

Siemens Power Mod™ Feed Thru Tap Box, 4-Wire Type WBT Low Voltage, 240 VAC, 3 ph, 100 kA Interrupt, NEMA 3R Enclosure, Galvanized Steel, 35.55 in W x 14.95 in D x 77.94 in H
Feed thru mains (type WBT) offer the ability to pull conductors in and out of the enclosure for riser cable applications utilizing incoming and outgoing bus connections (including lug provisions). In addition, a breaker is included, that feeds the cross bus for the meter stacks on this floor. Users do not have to utilize any additional tap boxes as lug provisions are already included in the units. This can save the end-user on the material cost of the meter bank as well as providing a disconnect per floor while saving precious wall space.
Features
- QuickSystem™ features
- Incoming and outgoing PowerMod™ thru bus
- Standard compression lug capability
- Field installable shunt trip
- All swing latches and rivets are stainless steel
- Connects via lugs, lug kits must be ordered separately per module
- Top/bottom feed
- Without hub provisions
Specifications
GTIN: 00804766906008
UNSPSC: 39121102
Alternative Part Number: 14829186
| Dimensions | 35.55 in W x 14.95 in D x 77.94 in H |
|---|---|
| Enclosure Type | NEMA 3R |
| Interrupt Rating | 100 kA |
| Material | Galvanized Steel |
| Phase | 3 ph |
| Type | 4-Wire Type WBT Low Voltage |
| Voltage Rating | 240 VAC |
| Sold as | EACH |
