Siemens TPS3SL515X2 Type 2 Internal Low Voltage True 10-Mode Protection Surge Protective Device With Surge Counter, 400Y/230 VAC, 47 to 63 Hz, 200 kA SCCR, 3 Phase
Siemens TPS3SL515X2 Type 2 Internal Low Voltage True 10-Mode Protection Surge Protective Device With Surge Counter, 400Y/230 VAC, 47 to 63 Hz, 200 kA SCCR, 3 Phase
MPN TPS3SL515X2
ASPN SIETPS3SL515X2
UPC 804766276361
Description
Features
- TPS TranSafe enabled - our patented TranSafe fault current protection circuitry provides peace of mind that your electronic loads are protected and that your electrical system will not go down due to SPD fault control operations
- Integral or internally mounted for optimized protection - internal surge protection dramatically reduces installation impedance allowing for superior installed suppressed voltage capabilities
- SAD/MOV hybrid suppression - for mission critical applications needing the absolute best suppressed voltage, our hybrid SAD/MOV suppressors combine tight clamping technology with integrated suppression, delivering the strongest installed protection capabilities available
- Low suppressed voltage ratings - TPS family offers some of the lowest UL 1449 listed suppressed voltage ratings available, meaning your electronics will last longer when compared to SPDs with higher ratings
- UL 96A lightning protection master labeling compliant
- Large block, individually fused, thermally protected, 50 kA MOVs
- Every MOV is monitored, including N-G

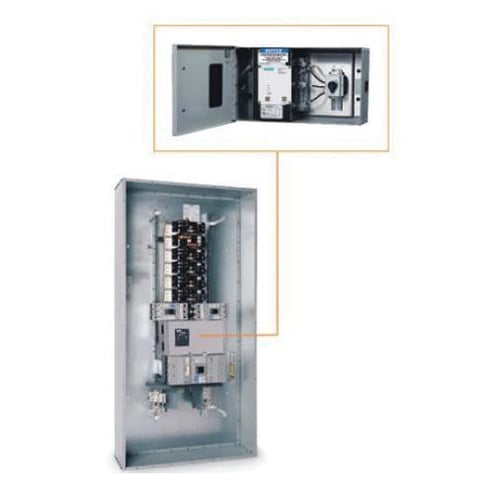

- Mounts internal to P4, P5 panelboards and distribution switchboards
- All UL required OCP and safety coordination included - type 1 SPDs intended for line or load side of main disconnect, type 2 SPDs intended for load side of main disconnect
- Standard monitoring - LED indicators, dry contacts, audible alarm with silence switch and test button, rotary disconnect switch
- 5000 hits repetitive impulse
- Directly connected discrete protection elements between all possible modes providing true 10-mode protection
- 1200 V L-N, 1200 V L-G, 1200 V N-G, 1800 V L-L voltage protection rating
Specifications
GTIN: 00804766276361
UNSPSC: 39121610
Country of Origin: United States of America (the)
| Type | Type 2 Internal Low Voltage True 10-Mode Protection |
|---|---|
| Terminal Type | Load |
| Number of Wires | 4+G |
| Color | Gray |
| Frequency Rating | 47 to 63 Hz |
| Weight | 37.5 lbs |
| Modes of Protection | L-N, L-G, N-G, L-L |
| Width | 7.6 in |
| Nominal Discharge Current | 20 kA |
| Enclosure Type | NEMA 1 |
| Short Circuit Current Rating | 200 kA |
| Dimensions | 10 in L x 17 in W x 6 in H |
| Peak Surge Current | 150 kA |
| Mounting Type | Wall |
| Series | TPS3 L5 |
| Phase | 3 |
| Material | Galvanneal Steel |
| Indicator Type | LED |
| Environmental Conditions | -15 to 140 deg F Operating, 1 to 95% Non-Condensing Relative Humidity |
| Electrical Ratings | 400Y/230 V AC |
| Response Time | <0.5 ns |
| BABA Compliant | No |
| Sold as | EACH |
