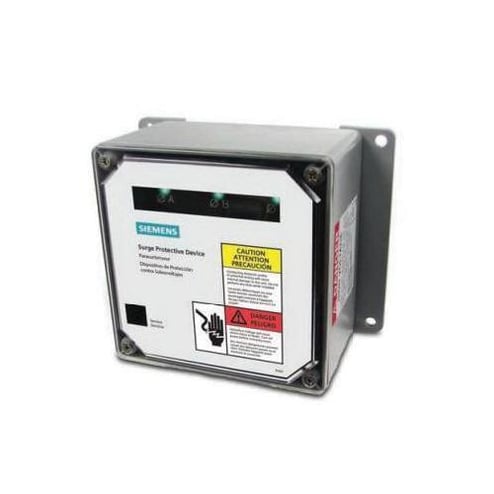

Siemens TPS3B1110D2 Type 2 External Low Voltage Standard Mode Surge Protective Device With Dry Contact and Audible Alarm, 120/240 VAC, 47 to 63 Hz, 200 kA SCCR, 3 Phase

Siemens Surge Protective Device, Type 2 External Low Voltage Standard Mode, Series: TPS3 11, 120/240 VAC, 47 to 63 Hz, 4+G Wires, 200 kA Short Circuit Current, 100 kA Peak Surge, 20 kA Nominal Discharge, Modes of Protection: L-N, L-G, N-G, L-L, <1 ns Response, LED Indicator, 3 Phase, Environmental Conditions: -15 to 140 deg F Operating, 0 to 95% Non-Condensing Relative Humidity, NEMA 4X, Wall Mount, Load Terminal, Polycarbonate, Gray, 6 in L x 6 in W x 4 in H

TPS3 11 is a UL 1449 3rd edition listed multi-mode Type 1 surge protective device with a per phase surge current capacity that can be increased to 200 kA. In addition, this unit provides UL 1283 listed EMI/RFI or sine wave tracking filtering that will condition low energy L-N coupled noise. When installed at the electrical service entrance, it can be used for UL 96A compliance (20 kA In). Standard monitoring includes protection status indication LEDs. Complete protection is intact when the status indicators are illuminated. When protection is lost, the status indicator will extinguish and the red service light will illuminate. An audible alarm and dry contacts are available monitoring options. A new diagnostic feature integrated within the TPS3 11 is Ground Integrity Monitoring or (GIM) diagnostic indication circuit. Ground Integrity Monitoring or (GIM) diagnostics monitors the health of the electrical system's neutral to ground bond. If voltage is seen across neutral and ground, the phase indicators will remain illuminated, while the red service light begins to flash alerting the end user that the electrical system grounding needs to be checked and serviced. This feature can be remotely monitored when the optional dry contacts are included. Siemens TPS3s are one of the first in the industry to offer this power quality safety and performance indication.
