Siemens TPS3A02250 TPS3 02 Type 1 Internal Low Voltage Standard Mode Surge Protective Device, 120/240 VAC, 47 to 63 Hz, 100 kA SCCR, 1 Phase
Siemens TPS3A02250 TPS3 02 Type 1 Internal Low Voltage Standard Mode Surge Protective Device, 120/240 VAC, 47 to 63 Hz, 100 kA SCCR, 1 Phase
MPN TPS3A02250
ASPN SIETPS3A02250
UPC 887621813666
Description
Features
- TPS TranSafe enabled - our patented TranSafe fault current protection circuitry provides peace of mind that your electronic loads are protected and that your electrical system will not go down due to SPD fault control operations
- Integral or internally mounted for optimized protection - internal surge protection dramatically reduces installation impedance allowing for superior installed suppressed voltage capabilities
- SAD/MOV hybrid suppression - for mission critical applications needing the absolute best suppressed voltage, our hybrid SAD/MOV suppressors combine tight clamping technology with integrated suppression, delivering the strongest installed protection capabilities available
- Low suppressed voltage ratings - TPS family offers some of the lowest UL 1449 listed suppressed voltage ratings available, meaning your electronics will last longer when compared to SPDs with higher ratings
- UL 96A lightning protection master labeling compliant
- Large block, individually fused, thermally protected, 50 kA MOVs
- Every MOV is monitored, including N-G

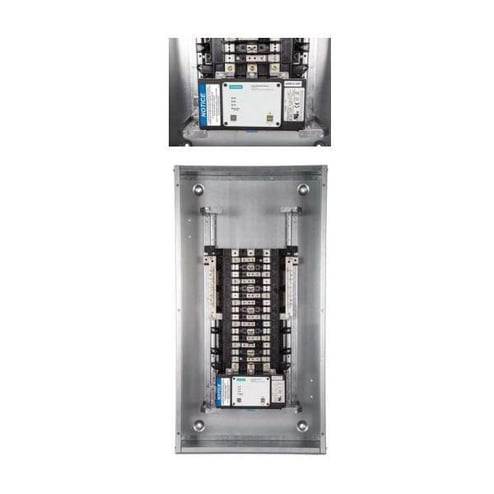

- Mounts internal to revised P1 lighting panelboards
- Consult factory for field retrofit in P1 panels
- All UL required OCP and safety coordination included - type 1 SPDs intended for line or load side of main disconnect, type 2 SPDs intended for load side of main disconnect
- Standard monitoring - LED indicators, dry contacts, audible alarm with silence switch and test button
- 5000 hits repetitive impulse
- Direct bus connected
- Can be wired to a circuit breaker
- 700 V L-N, 700 V L-G, 700 V N-G, 1200 V L-L voltage protection rating
Specifications
GTIN: 00887621813666
UNSPSC: 39121610
Country of Origin: United States of America (the)
| Type | Type 1 Internal Low Voltage Standard Mode |
|---|---|
| Number of Wires | 3+G |
| Color | Black |
| Frequency Rating | 47 to 63 Hz |
| Modes of Protection | L-N, L-G, N-G, L-L |
| Nominal Discharge Current | 20 kA |
| Enclosure Type | NEMA 1 |
| Short Circuit Current Rating | 100 kA |
| Dimensions | 11.6 in L x 5.7 in W x 4.9 in H |
| Peak Surge Current | 250 kA |
| Mounting Type | Wall |
| Series | TPS3 02 |
| Phase | 1 |
| Material | Aluminum |
| Indicator Type | LED/Audible Alarm |
| Environmental Conditions | -15 to 140 deg F Operating, 1 to 95% Non-Condensing Relative Humidity |
| Electrical Ratings | 120/240 V AC |
| Response Time | <0.5 ns |
| BABA Compliant | No |
| Terminal Type | Line/Load |
| Sold as | EACH |
