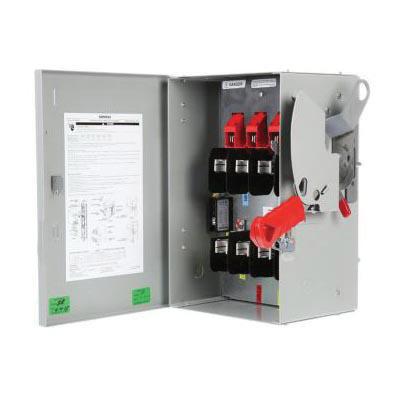

Siemens Sentron™ II SLVBHM4614GJ30 4-Pole Horizontal Heavy Duty Internal Ground Fusible Busway Plug, 600 VAC, 30 A, 4 Wires, IP55 Enclosure

Siemens Sentron™ II Fusible Busway Plug, 4-Pole Horizontal Heavy Duty Internal Ground, Series: SLVB, 600 VAC, 30 A Trip, 4 Wires, 3 ph, IP55 Enclosure, 13.86 in H x 13.13 in W Dimensions

Sentron™ bus Plugs are engineered with the installer and end user in mind. The installer will benefit from the numerous features, such as factory installed circuit breakers, compact footprint, generous wire bend space and dual interlocks. The end user will appreciate the visible position indicator, as well as the spring loaded pad lockable latch which prevents access to unauthorized personnel. Sentron™ bus Plugs are designed with an interlock device to prevent the door from being opened when the disconnect is on. This also prevents the disconnect from being turned on while the door is open. The interlock ensures that the protective device is "OFF" prior to installation or removal of the bus plug. Once the bus plug is properly installed, a spring loaded, padlock latch provides additional security by preventing unauthorized access to the unit. Alignment and interlock stabs are features of the Sentron™ bus Plugs engineered to prevent improper installation of the unit. Guide stabs prevent installing the bus plug 180 deg out of rotation. In addition, the stabs provide vertical support for vertical applications. The bus plug ground stabs are designed to ensure positive contact with both the integral and optional Internal bu software ay grounds before the bus plug fingers contact the phase and neutral bars. Sentron™ bus Plugs also feature bolt-on mounting to the bu software ay housing for secure attachment.
