Description

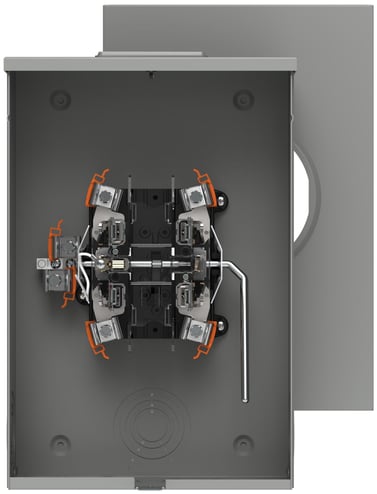

Siemens TALON Meter Socket, 1-Position Type HQU4/5, 600 VAC, 200 A, 1/3 ph, Overhead/Underground Feed, 5 Jaws, 6 AWG to 350 kcmil Wire, HD Closing Plate Hub, Ringless Cover, Lug Terminal, Surface Mounting, NEMA 3R Enclosure, 19 in H x 12.8 in W x 5 in D Dimensions
Siemens meter socket designs have been in the industry for more than 60 years. No 1-knows metering installations like Siemens. Our meter sockets set the standard for quality, design and workmanship. This is why we use stainless steel hardware, polyester powder coat paint for long lasting protection and appearance, type G90 galvanized steel or 3003 grade aluminum enclosures and in our commercial sockets, an all plated copper current path. This is why Siemens meter sockets are seen in so many utility specifications.
Features
- With 9 o'clock position 5th jaw terminal and lever bypass
- Labeled for use on Delmarva power and Atlantic city electric
- Most commercial sockets include a ground lug and some models are available with line and load lugs installed
- Lever bypass sockets feature the type HQ socket which is recognized by utilities as the industry standard for durability and quality
- Siemens features one of the most complete and comprehensive meter socket lines
- Steel construction
Specifications
GTIN: 00783643627161
UNSPSC: 39121102
Country of Origin: Mexico
| Type | 1-Position Type HQU4/5 |
|---|---|
| Terminal Type | Lug |
| Wire Size | 6 AWG to 350 kcmil |
| Voltage Rating | 600 V AC |
| Weight | 2 lbs |
| Feed Type | Overhead/Underground |
| Hub Type | HD Closing Plate |
| Enclosure Type | NEMA 3R |
| Dimensions | 19 in H x 12.8 in W x 5 in D |
| Cover Type | Ringless |
| Mounting Type | Surface |
| Number of Jaws | 5 |
| Phase | 1/3 |
| Amperage Rating | 200 A |
| BABA Compliant | No |
| Sold as | EACH |
