Description

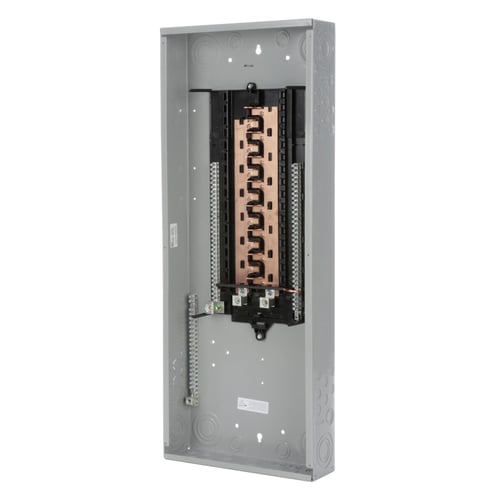

Siemens Single Phase Main Lug Load Center, Series: PL Series, 120/240 VAC, 200 A, 22 kA Interrupt, 40 Circuits, MBK200A Breaker, 3-Wire Wiring Configuration, 200 A Bus Rating, 30 Spaces, NEMA 1 Enclosure, 36 in H x 14-1/4 in W x 3-7/8 in D Enclosure Box
The PL series load center product line provides a wide array of variation to meet any application need.
Features
- Invertible for bottom feed application
- All devices are provided with 2 factory installed ground bars
- Combination head screw on the neutrals, ground, trim, upper pan, and bond screw provide installation flexibility
- A rigid, sturdy base pan provides the ruggedness required for the most harsh applications
- All devices convertible from main lug to main breaker and vice versa
- Mounting tabs on the trim hold it in place on the load center, freeing up both hands to drive the trim screws
- The prepositioned bond screw eliminates bond strap/screw assemblies, and reduces the risk of losing components in the field
- The patented INSTA-WIRE neutral/ground system allows for faster installation because screws are backed out, ready for wire insertion
- The visible neutral and grounds system aids in the insertion of conductors
- Dual neutrals on all configurations
- Indoor enclosure
- Copper busbar
- MBK150A/MBK200A breaker
- Combination mounting
Specifications
GTIN: 00040892650464
UNSPSC: 39121101
Country of Origin: Mexico
| Interrupt Rating | 22 kA |
|---|---|
| Wiring Configuration | 3-Wire |
| Enclosure Box Size | 36 in H x 14-1/4 in W x 3-7/8 in D |
| Voltage Rating | 120/240 V AC |
| Weight | 47 lbs |
| Number of Spaces | 30 |
| Width | 1.2 in |
| Breaker Type | MBK200A |
| Enclosure Type | NEMA 1 |
| Bus Rating | 200 A |
| Series | PL Series |
| Number of Circuits | 40 |
| Amperage Rating | 200 A |
| BABA Compliant | No |
| Sold as | EACH |
