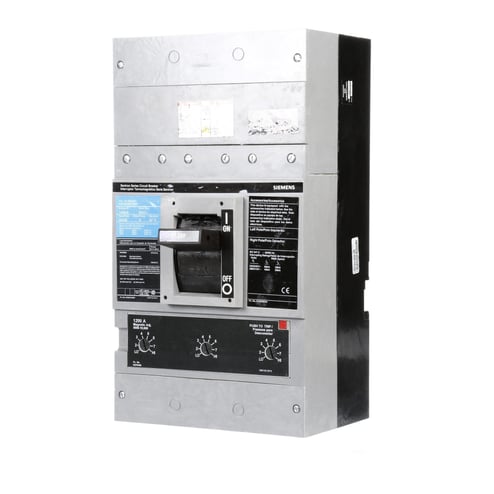

Siemens NXD63B120H Type NXD6 Low Voltage Molded Case Circuit Breaker, 600 VAC/500 VDC, 1200 A, 25 kA Interrupt, 3 Poles, LI/Thermal Magnetic Trip


Description

Siemens Molded Case Circuit Breaker, Type NXD6 Low Voltage, 600 VAC/500 VDC, 1200 A, 50/60 Hz Frequency, 25 kA Interrupt, ND Frame, LI/Thermal Magnetic Trip, 5000 to 10000 A Trip, 3 Pole, 3 ph, Bolted-On Mounting, 40 deg C, 16 in H x 9 in W x 6 in D Dimensions

Siemens Sentron™ series circuit breakers have a long history of excellent performance in both the commercial and industrial market segments, they are tried and true in the most critical applications. Siemens Sentron™ series circuit breakers are available in nine frame sizes from 125 A to 2000 A.

Features

  • Field installable external accessories
  • Series connected short circuit ratings
  • ND frame with standard breaking capacity and non-interchangeable trip

Specifications

GTIN: 00783643320307

UNSPSC: 39121601

Country of Origin: Mexico

Type
Type NXD6 Low Voltage
Trip Type
Thermal Magnetic
Interrupt Rating
25 kA
Number of Poles
3
Frequency Rating
50/60 Hz
Voltage Rating
600 V AC/500 V DC
Width
15 in
Dimensions
16 in H x 9 in W x 6 in D
Mounting Type
Bolted-On
Trip Range
5000 to 10000 A
Phase
3
Amperage Rating
1200 A
Temperature Rating
40 deg C
Frame
ND
BABA Compliant
No
Sold as
EACH
