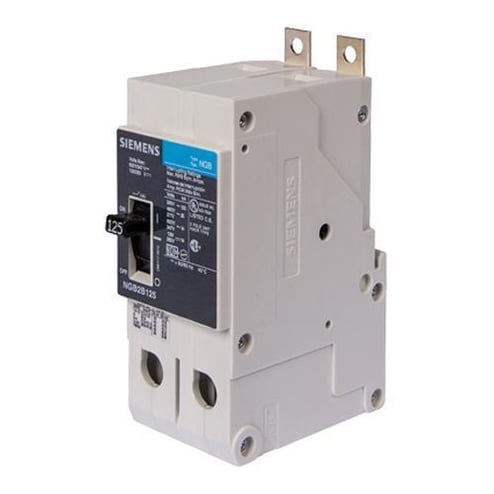

Siemens NGB2B080V Low Voltage Molded Case Circuit Breaker, 600Y347480Y277 VAC, 80 A, 14 to 25 kA Interrupt, 2 Poles, LIThermal Magnetic Trip


Description

Siemens Molded Case Circuit Breaker, Low Voltage, 600Y/347/480Y/277 VAC, 80 A, 50/60 Hz Frequency, 14 to 25 kA Interrupt, NGB Frame, LI/Thermal Magnetic Trip, 2 Pole, 1 ph, Load Connection, 8 to 1/0/8 to 2/0 AWG Wire, Panel Mounting, 40 deg C, 5.4 in H x 2 in W x 2.8 in D Dimensions

Siemens Panelboard mounting circuit breakers are designed for quick installation in Siemens panelboards and switchboards. The interlocking features allow for one screw installation which mounts the breaker line end bus tab to the panelboard bus bar. Ideally suited for use in lighting panels, these breakers offer HACR ratings as well as Switching Duty ratings for 15 to 20 A and HID ratings from 15 to 50 A.

Features

  • NGB frame with standard breaking capacity

Specifications

GTIN: 00783643555273

UNSPSC: 39121601

Country of Origin: Mexico

Type
Low Voltage
Trip Type
Thermal Magnetic
Wire Size
8 to 1/0/8 to 2/0 AWG
Interrupt Rating
14 to 25 kA
Number of Poles
2
Frequency Rating
50/60 Hz
Voltage Rating
600Y/347/480Y/277 V AC
Weight
0
Dimensions
5.4 in H x 2 in W x 2.8 in D
Mounting Type
Panel
Connection Type
Load
Phase
1
Amperage Rating
80 A
Temperature Rating
40 deg C
Frame
NGB
BABA Compliant
No
Sold as
EACH
