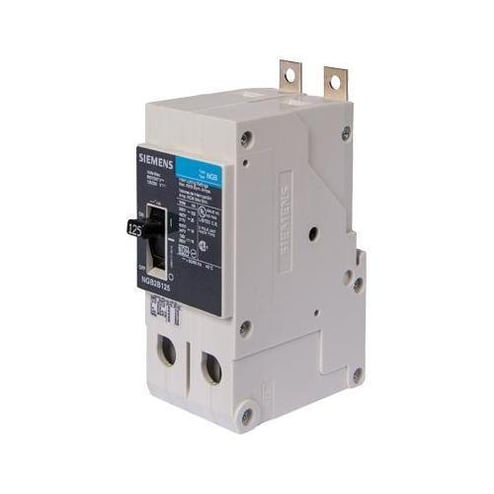

Siemens NGB2B070BNAV Low Voltage Molded Case Circuit Breaker With Lugs, 600Y347480Y277 VAC, 70 A, 14 to 25 kA Interrupt, 2 Poles, ThermalMagnetic Trip


Description

Siemens Molded Case Circuit Breaker, Low Voltage, 600Y/347/480Y/277 VAC, 70 A, 50/60 Hz Frequency, 14 to 25 kA Interrupt, NGB Frame, Thermal/Magnetic Trip, 2 Pole, Load Connection, 8 to 1/0/8 to 2/0 AWG Wire, Panel Mounting, 50 deg C, 5.4 in H x 2 in W x 2.8 in D Dimensions

Siemens Panelboard mounting circuit breakers are designed for quick installation in Siemens panelboards and switchboards. The interlocking features allow for one screw installation which mounts the breaker line end bus tab to the panelboard bus bar. Ideally suited for use in lighting panels, these breakers offer HACR ratings as well as Switching Duty ratings for 15 to 20 A and HID ratings from 15 to 50 A.

Features

  • NGB frame with standard breaking capacity

Specifications

GTIN: 00040892165029

UNSPSC: 39121601

Alternative Part Number: 10566820

Country of Origin: Mexico

Type
Low Voltage
Trip Type
Thermal/Magnetic
Interrupt Rating
14 to 25 kA
Number of Poles
2
Frequency Rating
50/60 Hz
Dimensions
5.4 in H x 2 in W x 2.8 in D
Mounting Type
Panel
Connection Type
Load
Amperage Rating
70 A
Temperature Rating
50 deg C
Frame
NGB
BABA Compliant
No
Voltage Rating
600Y/347/480Y/277 VAC
Wire Size
8 to 1/0/8 to 2/0 AWG
Sold as
EACH
