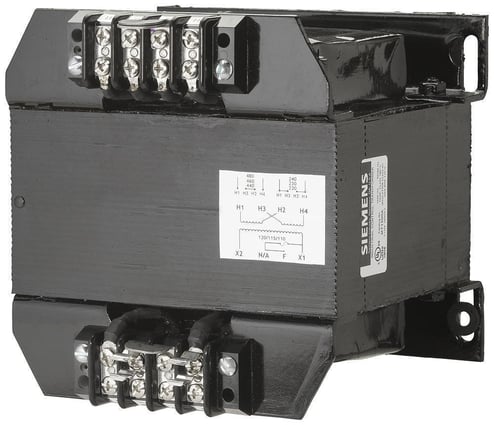

Siemens MT1500N Class MT Robust Design Control Power Transformer, 240347380 V Primary, 120240 V Secondary, 1500 VA Power Rating, 5060 Hz, 1 ph Phase
Siemens MT1500N Class MT Robust Design Control Power Transformer, 240347380 V Primary, 120240 V Secondary, 1500 VA Power Rating, 5060 Hz, 1 ph Phase
MPN MT1500N
ASPN SIEMT1500N
UPC 754554396132
Description
Features
- Enclosed coils (50 to 5000 VA) completely encloses the transformer coils against moisture, dust, dirt and industrial contaminants for maximum protection in hostile and industrial environments
- Fuse clips (most models) - factory mounted for integral fusing on the secondary side to save panel space, save wiring time and save the cost of buying an add-on fuse block or kit
- Integrally finger safe terminals, between terminals and transformer, protect against electrical creep age, up to 30% greater terminal contact area permits low loss connections and extra deep barriers reduce the chance of shorts from frayed leads or careless wiring
- Terminals molded into the transformer, are difficult to break during wiring and a full quarter inch of thread on the 8 to 32 terminal screws prevents stripping and pullout
- Two jumper links are standard with all transformers which can be wired for dual primary voltages
- Use the voltage table to determine the primary and secondary voltage required
- Does not include secondary fuse clip on any size
Specifications
GTIN: 00754554396132
UNSPSC: 39121026
Country of Origin: Mexico
| Type | Robust Design |
|---|---|
| Frequency Rating | 50/60 Hz |
| Weight | 185 lbs |
| Series | Class MT |
| Secondary Voltage | 120/240 V |
| Phase | 1 |
| Primary Voltage | 240/347/380 V |
| Power Rating | 1500 VA |
| BABA Compliant | No |
| Sold as | EACH |
