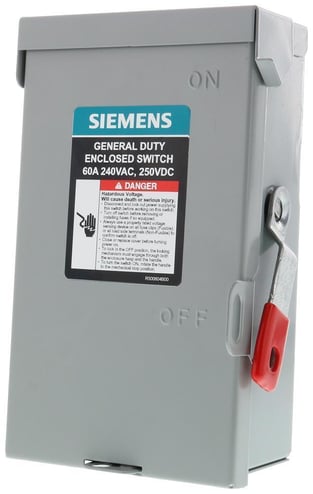

Siemens LNF222RAU A Series Type VBII Non-Fused Low Voltage General Duty Safety Switch, 240 VAC, 250 VDC, 60 A, 10 hp, 15 hp, 2 Poles
Siemens LNF222RAU A Series Type VBII Non-Fused Low Voltage General Duty Safety Switch, 240 VAC, 250 VDC, 60 A, 10 hp, 15 hp, 2 Poles
MPN LNF222RAU
ASPN SIELNF222RAU
UPC 804766784743
Description
Features
- Updated software itch is an enhancement of legacy VBII design
- New compact sizes for improved space efficiency
- New oversized lugs for maximum wire range and easy termination, 30 A software itches
- Visible blade, double break software itching action
- Padlocking provisions to lock cover closed or to lock software itch in the "OFF" position
- Rated 10000 AIC with class K fuses or H fuses or rated 100000 AIC with class R fuses
- 10 hp at 1 ph, 15 hp at 3-phase
Specifications
GTIN: 00804766784743
UNSPSC: 39122205
Country of Origin: Mexico
| Terminal Type | Line/Load/Neutral Lug |
|---|---|
| Number of Wires | 2 |
| Number of Poles | 2 |
| Color | Gray |
| Voltage Rating | 240 V AC/250 V DC |
| Actuator Type | Double Break/Padlock |
| Weight | 93 lbs |
| Enclosure Type | NEMA 3R |
| Short Circuit Current Rating | 10/100 kA |
| Series | A Series |
| Phase | 1/3 |
| Material | Steel |
| Amperage Rating | 60 A |
| Finish | Galvanized |
| Horsepower | 10 hp, 15 hp |
| BABA Compliant | No |
| Dimensions | 8.56 in H x 5.44 in W x 2.75 in D |
| Type | Type VBII Non-Fused Low Voltage |
| Sold as | EACH |
