Description

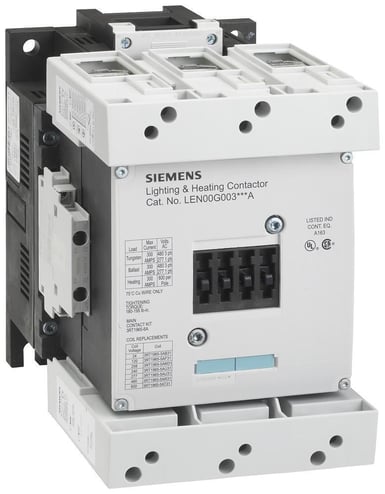

Siemens Lighting Contactor, Electrically Held, Series: Class LE, 480 VAC Coil, 590 VA Pickup, 6.7 VA Holding Coil, 3 Pole, 60 Hz Frequency, Non-Combination Contact, 3NO-0NC Contact Configuration, 4 Auxiliary Contacts, 300 A at 277/480/600 VAC Contact, Screw Terminal, Open Enclosure, 10000000 Cycles Operating Cycles, 104 deg F Operating, Surface Mounting, 8.57 in H x 5.92 in W x 8.24 in D Dimensions
These Contactors are used in applications where it is not critical that the contacts remain in the closed position during loss of control power. Simplicity and compact lightweight design makes these contactors an attractive solution to your budgeting challenges.
Features
- Full line of enclosures including NEMA 1, 3/3R, 4, 4/4X stainless steel and 12
Specifications
GTIN: 00754554788746
UNSPSC: 39121529
Country of Origin: Germany
| Type | Electrically Held |
|---|---|
| Operating Temperature | 104 deg F |
| Terminal Type | Screw |
| Number of Poles | 3 |
| Frequency Rating | 60 Hz |
| Coil Power Rating | 590 VA Pickup, 6.7 VA Holding |
| Weight | 0.5 lbs |
| Width | 7.5 in |
| Enclosure Type | Open |
| Dimensions | 8.57 in H x 5.92 in W x 8.24 in D |
| Coil Voltage | 480 VAC |
| Mounting Type | Surface |
| Series | Class LE |
| Contact Configuration | 3NO-0NC |
| Contact Rating | 300 A at 277/480/600 VAC |
| Operating Cycles | 10000000 Cycles |
| Contact Type | Non-Combination |
| Number of Auxiliary Contacts | 4 |
| BABA Compliant | No |
| Sold as | EACH |
