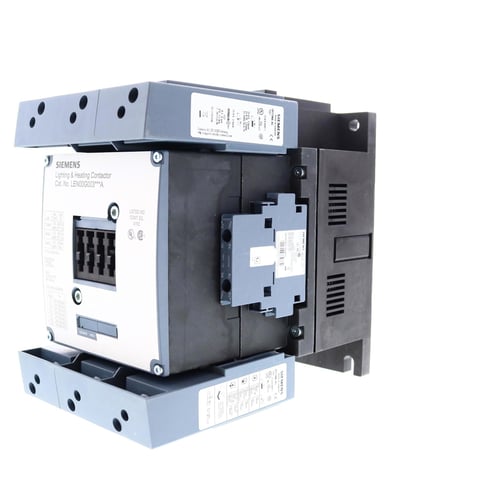

Siemens LEN00G003120A A Series Class LE Electrically Held Lighting Contactor, 120 VAC V Coil, 300 A, 3NO-0NC Contact, 3 Poles
Siemens LEN00G003120A A Series Class LE Electrically Held Lighting Contactor, 120 VAC V Coil, 300 A, 3NO-0NC Contact, 3 Poles
MPN LEN00G003120A
ASPN SIELEN00G003120A
UPC 754554784847
Description
Features
- Used in applications where it is not critical that contacts remain closed if control power is lost
- Rated for tungsten lighting (incandescent filament), ballast lighting (fluorescent, HID, metal halide, mercury vapor, quartz halogen and sodium lamp), resistive and general use loads
- Contacts are rated up to 30 A at 600 VAC
- Most contactors have built-in auxiliary contacts for convenient 3-wire control
- Compact design allows for smaller panels and more wiring room
- Finger and back of hand safe terminals
- Full line of factory and field modifications
Specifications
GTIN: 00754554784847
UNSPSC: 39121529
Country of Origin: Germany
| Operating Temperature | 32 to 104 deg F |
|---|---|
| Terminal Type | Screw |
| Maximum Load Current | 300 A |
| Number of Poles | 3 |
| Frequency Rating | 60 Hz |
| Coil Power Rating | 590 VA Pickup, 6.7 VA Holding |
| Weight | 2 lbs |
| Enclosure Type | Open |
| Coil Voltage | 120 V AC |
| Mounting Type | Surface |
| Series | A Series |
| Contact Configuration | 3NO |
| Operating Cycles | 10000000 Cycles |
| Contact Type | Non-Combination |
| Number of Auxiliary Contacts | 4 |
| BABA Compliant | No |
| Dimensions | 8.57 in H x 5.92 in W x 8.24 in D |
| Type | Class LE Electrically Held |
| Contact Rating | 300 A at 277/480/600 V AC |
| Sold as | EACH |
