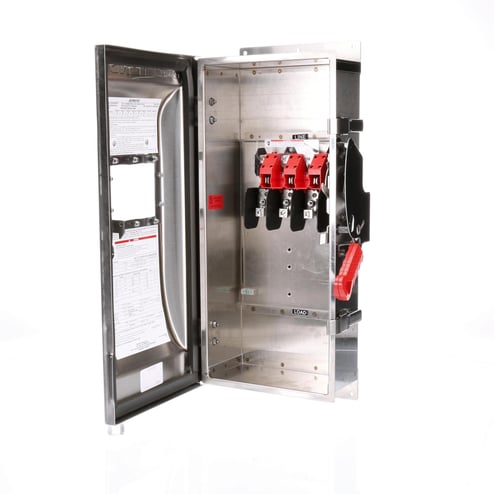

Siemens HNF363SW Type VBII Enclosed Heavy Duty Low Voltage Non-Fusible Single Throw Safety Switch With Viewing Window, 600 VAC, 100 A, 100 hp, TPST Contact, 3 Poles
Siemens HNF363SW Type VBII Enclosed Heavy Duty Low Voltage Non-Fusible Single Throw Safety Switch With Viewing Window, 600 VAC, 100 A, 100 hp, TPST Contact, 3 Poles
MPN HNF363SW
ASPN SIEHNF363SW
UPC 783643221932
Description
Features
- Quick-make, quick break operating mechanism that ensures positive operation
- Visible blade, double break switching action
- Arc chutes dissipate heat and prolong switch life
- Highly visible red handle grip designed for hook stick operation
- Defeatable dual cover interlock, center punch provided for field drilling to allow on padlocking
- Center punch provided for field drilling to allow on padlocking
- Handle can be padlocked in the off position with up to (3) padlocks with 5/16 in hasps
- Generous top, bottom and side gutters that meet or exceed NEC® wire bending space requirements
- Informative door labeling which includes replacement parts list
- Tangential knockouts through 600 A for easy conduit lineup
- Side hinged door that opens 180 deg for easier wiring
- Unique enclosure design increases rigidity and prevents cuts and scrapes to conductors and installers hands
- Spring reinforced fuse clips that assure reliable contact for cool operation
- Door latch securely holds door closed and allows cover padlocking
- Front removable mechanical lugs that are suitable for copper aluminum 60 or 75 deg C conductors
- Lugs are field convertible to copper body and to a wide variety of compression connectors
- Hinged clear line terminal shield with probe holes for inspecting or testing line side terminals
- Embossed aluminum nameplate on heavy duty switches provides highly visible ON/OFF indication
- Drawn cover for increased rigidity and resistance to abuse
- Top key hole and bottom mounting holes provide easy 2 or 3-point mounting
Specifications
GTIN: 00783643221932
UNSPSC: 39122205
Country of Origin: Mexico
| Type | Type VBII Enclosed Heavy Duty Low Voltage Non-Fusible Single Throw |
|---|---|
| Terminal Type | Lug |
| Number of Wires | 3 |
| Number of Poles | 3 |
| Frequency Rating | 60 Hz |
| Voltage Rating | 600 V AC |
| Weight | 0 |
| Enclosure Type | NEMA 4X |
| Short Circuit Current Rating | 200 kA |
| Dimensions | 25 in H x 10.43 in W x 10.46 in D |
| Insulation Type | Insulated |
| Mounting Type | Surface |
| Phase | 3 |
| Material | 304 Stainless Steel |
| Amperage Rating | 100 A |
| Contact Form | 3PST |
| Temperature Rating | -29 to 85 deg C |
| Horsepower | 100 hp |
| BABA Compliant | No |
| Sold as | EACH |
