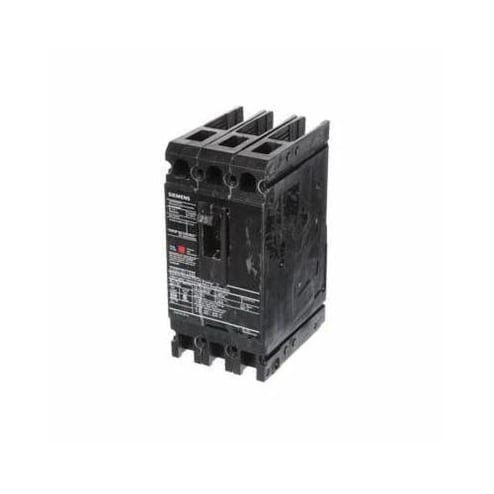

Siemens HED43M090 Low Voltage Molded Case Circuit Breaker, 480 VAC250 VDC, 90 A, 42 kA Interrupt, 3 Poles, ThermalMagnetic Trip


Description

Siemens Molded Case Circuit Breaker, Low Voltage, 480 VAC/250 VDC, 90 A, 50/60 Hz Frequency, 42 kA Interrupt, ED Frame, Thermal/Magnetic Trip, 3 Pole, 3 ph, Load Lug Connection, 10 to 1/0 AWG Al/Cu Wire, Bolted-On Mounting, 50 deg C, 4 in L x 7 in W x 6 in H Dimensions

SiemensSentronSeriesCircuit Breakers have a long history of excellent performance in both the commercial and industrial market segments, they are tried and true in the most critical applications. Siemens SentronSeries circuit breakers are available in nine frame sizes from 125 to 2000 A.

Features

  • Field installable external accessories
  • Series connected short circuit ratings
  • 100% rated frames
  • Many sizes for motor circuit protectors and molded case switches
  • ED frame with high breaking capacity
  • High IC rating

Specifications

GTIN: 00783643007215

UNSPSC: 39121601

Alternative Part Number: 7494275

Country of Origin: Mexico

Type
Low Voltage
Number of Poles
3
Frequency Rating
50/60 Hz
Mounting Type
Bolted-On
Connection Type
Load Lug
Phase
3
Temperature Rating
50 deg C
BABA Compliant
No
Amperage Rating
90 A
Dimensions
4 in L x 7 in W x 6 in H
Weight
0.8 lbs
Interrupt Rating
42 kA
Wire Size
10 to 1/0 AWG Al/Cu
Trip Type
Thermal/Magnetic
Frame
ED
Voltage Rating
480 VAC/250 VDC
Sold as
EACH
