Description

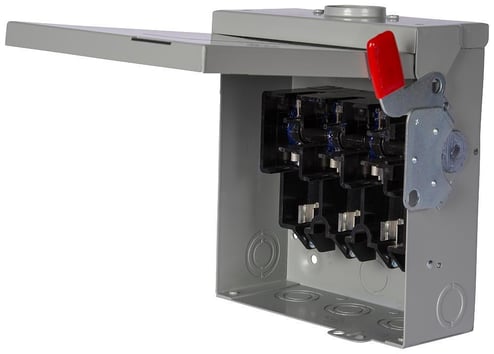

Siemens General Duty Safety Switch, Fusible, 240 VAC, 400 A, 125 hp at 240 VAC/50 hp at 250 VDC, 3 Phase, 2 Poles, NEMA 1, 45.3 in H x 22 in W x 13.1 in D, Cold Rolled Steel, Gray
Features
- Quick make and break switching action
- Visible blade design
- Highly visible ON/OFF indication
- Modular design allows quick and easy replacement of parts
- Single cover interlock
- Lay in lugs for easy wiring
- Can utilize either one large or two small wires
- Spring loaded heat sink fuse clip
- One-piece line and load base for consistent phase o phase allignment
- Extra ground lug on neutral
- Tangential knock out
Specifications
GTIN: 00887621872960
UNSPSC: 39122205
Country of Origin: Mexico
| Type | Fusible |
|---|---|
| Number of Poles | 2 |
| Color | Gray |
| Voltage Rating | 240 V AC |
| Width | 6.3 in |
| Enclosure Type | NEMA 1 |
| Dimensions | 45.3 in H x 22 in W x 13.1 in D |
| Phase | 3 |
| Material | Cold Rolled Steel |
| Amperage Rating | 400 A |
| Horsepower | 125 hp at 240 VAC/50 hp at 250 VDC |
| BABA Compliant | No |
| Sold as | EACH |
