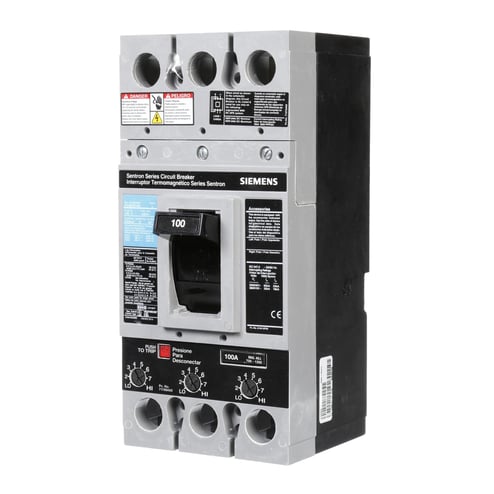

Siemens Sentron™ FXD63B100 Type FXD6 Low Voltage Molded Case Circuit Breaker, 600 VAC, 100 A, 22 kA Interrupt, 3 Poles, Thermal/Magnetic Trip


Description

Siemens Sentron™ Molded Case Circuit Breaker, Type FXD6 Low Voltage, 600 VAC, 100 A, 50/60 Hz Frequency, 22 kA Interrupt, FD Frame, Thermal/Magnetic Trip, 700 to 1200 A Trip, 3 Pole, 3 ph, Line/Load Lug Connection, Freestanding Mounting, 40 deg C, 6.9 in L x 5.5 in W x 11.1 in H Dimensions

Siemens Sentron™ series circuit breakers have a long history of excellent performance in both the commercial and industrial market segments, they are tried and true in the most critical applications. Siemens Sentron™ series circuit breakers are available in nine frame sizes from 125 to 2000 A.

Features

  • Molded case circuit breakers are used in motor circuits as a disconnecting means and for short circuit protection
  • They should be used in conjunction with motor running, overcurrent protection devices, and should permit the motor to start without nuisance tripping from motor inrush current
  • The circuit breaker should have a continuous current rating of not less than 115% of the motor full load current
  • Varying actuator
  • Varying enclosure
  • Blue label

Specifications

GTIN: 00783643211223

UNSPSC: 39121601

Country of Origin: Mexico

Type
Type FXD6 Low Voltage
Trip Type
Thermal Magnetic
Interrupt Rating
22 kA
Number of Poles
3
Frequency Rating
50/60 Hz
Voltage Rating
600 V AC
Dimensions
6.9 in L x 5.5 in W x 11.1 in H
Mounting Type
Freestanding
Trip Range
700 to 1200 A
Connection Type
Line/Load Lug
Phase
3
Amperage Rating
100 A
Volume
2638.7 cubic inches
Temperature Rating
40 deg C
Frame
FD
BABA Compliant
No
Sold as
EACH
