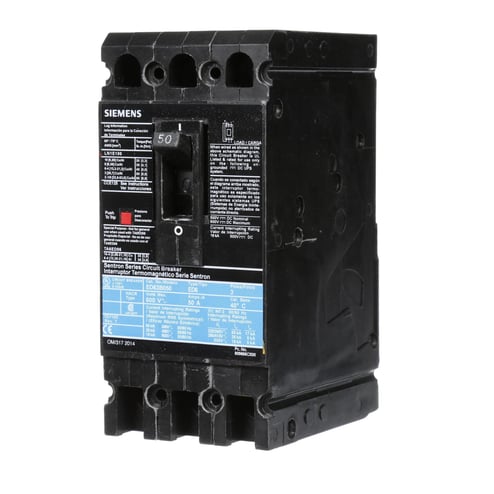

Siemens Sentron™ ED63B050 Type ED6 Low Voltage Molded Case Circuit Breaker, 600 VAC/250 VDC, 50 A, 18 kA Interrupt, 3 Poles, Thermal/Magnetic Trip


Description

Siemens Sentron™ Molded Case Circuit Breaker, Type ED6 Low Voltage, 600 VAC/250 VDC, 50 A, 50/60 Hz Frequency, 18 kA Interrupt, ED Frame, Thermal/Magnetic Trip, 3 Pole, 3 ph, Load Lug Connection, 10 to 1/0 AWG Wire, 40 deg C, 4.2 in L x 5.9 in W x 7.6 in H Dimensions

Siemens Sentron™ series circuit breakers have a long history of excellent performance in both the commercial and industrial market segments, they are tried and true in the most critical applications. Siemens Sentron™ series circuit breakers are available in nine frame sizes from 125 to 2000 A.

Features

  • All ED frame circuit breakers may be reverse connected
  • 10 to 1/0 AWG copper aluminum wire range
  • Varying actuator
  • Varying enclosure
  • Blue label

Specifications

GTIN: 00783643209732

UNSPSC: 39121601

Alternative Part Number: 7552575

Country of Origin: Mexico

Trip Type
Thermal/Magnetic
Number of Poles
3
Frequency Rating
50/60 Hz
Voltage Rating
600 VAC/250 VDC
Phase
3
Temperature Rating
40 deg C
BABA Compliant
No
Amperage Rating
50 A
Connection Type
Load Lug
Weight
58 lbs
Type
Type ED6 Low Voltage
Wire Size
10 to 1/0 AWG
Interrupt Rating
18 kA
Frame
ED
Dimensions
4.2 in L x 5.9 in W x 7.6 in H
Sold as
EACH
