Siemens

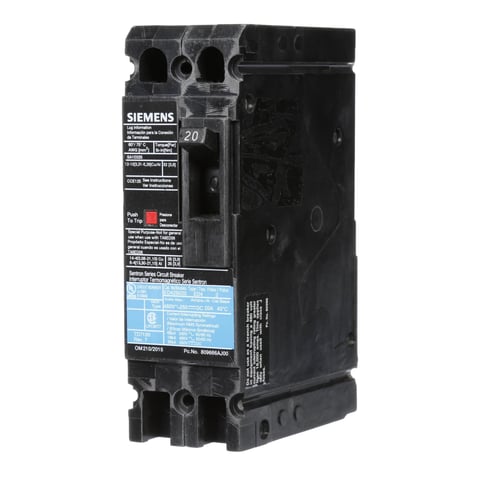

Siemens Sentron™ ED42B020 Type ED4 Low Voltage Molded Case Circuit Breaker, 480 VAC/250 VDC, 20 A, 18 kA Interrupt, 2 Poles, Thermal/Magnetic Trip


Description

Siemens Sentron™ Molded Case Circuit Breaker, Type ED4 Low Voltage, 480 VAC/250 VDC, 20 A, 50/60 Hz Frequency, 18 kA Interrupt, ED Frame, Thermal/Magnetic Trip, 2 Pole, 1 ph, Load Lug Connection, 14 to 10 AWG, 12 to 10 AWG Wire, Panel Mounting, 40 deg C, 3 in L x 6 in W x 7 in H Dimensions

Siemens Sentron™ series circuit breakers have a long history of excellent performance in both the commercial and industrial market segments, they are tried and true in the most critical applications. Siemens Sentron™ series circuit breakers are available in nine frame sizes from 125 to 2000 A.

Features

  • All ED frame circuit breakers may be reverse connected
  • 14 to 10 AWG copper, 12 to 10 AWG aluminum wire
  • Varying actuator
  • Varying enclosure
  • Blue label

Specifications

GTIN: 00783643209220

UNSPSC: 39121601

Country of Origin: Mexico

Trip Type
Thermal Magnetic
Interrupt Rating
18 kA
Number of Poles
2
Frequency Rating
50/60 Hz
Voltage Rating
480 V AC/250 V DC
Mounting Type
Panel
Connection Type
Load Lug
Phase
1
Amperage Rating
20 A
Temperature Rating
40 deg C
Frame
ED
BABA Compliant
No
Weight
15.6 lbs
Type
Type ED4 Low Voltage
Dimensions
3 in L x 6 in W x 7 in H
Wire Size
14 to 10 AWG, 12 to 10 AWG
Sold as
EACH
