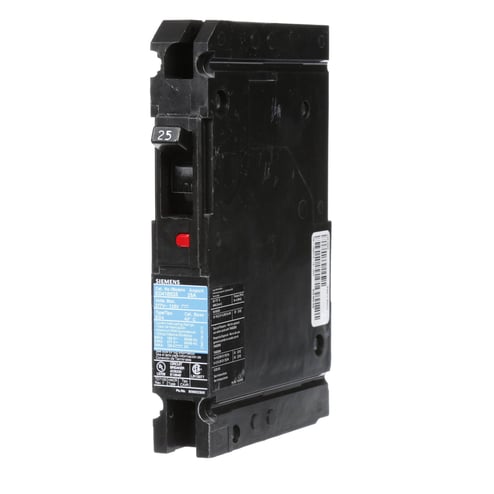

Siemens Sentron™ ED41B025 Type ED4 Low Voltage Molded Case Circuit Breaker, 120/277 VAC/125 VDC, 25 A, 22 kA Interrupt, 1 Poles, Thermal/Magnetic Trip


Description

Siemens Sentron™ Molded Case Circuit Breaker, Type ED4 Low Voltage, 120/277 VAC/125 VDC, 25 A, 50/60 Hz Frequency, 22 kA Interrupt, ED Frame, Thermal/Magnetic Trip, 1 Pole, 1 ph, Load Lug Connection, 14 to 10 AWG, 12 to 10 AWG Wire, Panel Mounting, 40 deg C, 6 in L x 1 in W x 5 in H Dimensions

Siemens Sentron™ series circuit breakers have a long history of excellent performance in both the commercial and industrial market segments, they are tried and true in the most critical applications. Siemens Sentron™ series circuit breakers are available in nine frame sizes from 125 to 2000 A.

Features

  • All ED frame circuit breakers may be reverse connected
  • 14 to 10 AWG copper, 12 to 10 AWG aluminum wire
  • Varying actuator
  • Varying enclosure
  • Blue label

Specifications

GTIN: 00783643209107

UNSPSC: 39121601

Country of Origin: Mexico

Trip Type
Thermal/Magnetic
Wire Size
14 to 10 AWG, 12 to 10 AWG
Number of Poles
1
Frequency Rating
50/60 Hz
Mounting Type
Panel
Connection Type
Load Lug
Phase
1
Amperage Rating
25 A
Temperature Rating
40 deg C
Frame
ED
BABA Compliant
No
Dimensions
6 in L x 1 in W x 5 in H
Voltage Rating
120/277 VAC/125 VDC
Interrupt Rating
22 kA
Type
Type ED4 Low Voltage
Sold as
EACH
