Siemens

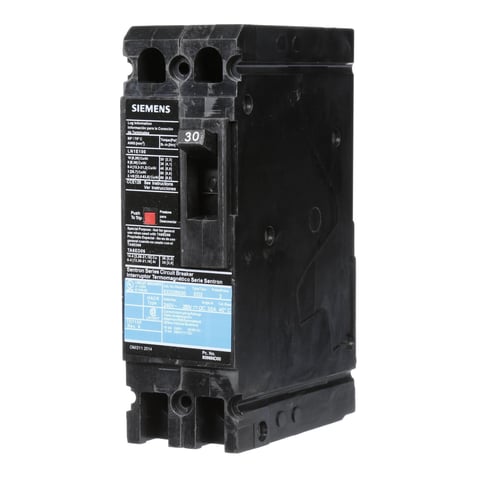

Siemens Sentron™ ED22B030 Type ED2 Low Voltage Molded Case Circuit Breaker, 240 VAC, 125/250 VDC, 30 A, 10 kA Interrupt, 2 Poles, Thermal/Magnetic Trip


Description

Siemens Sentron™ series circuit breakers have a long history of excellent performance in both the commercial and industrial market segments, they are tried and true in the most critical applications. Siemens Sentron™ series circuit breakers are available in nine frame sizes from 125 to 2000 A.

Features

  • All ED frame circuit breakers may be reverse connected
  • 10 to 1/0 AWG copper aluminum wire
  • Varying actuator
  • Varying enclosure
  • Blue label

Specifications

GTIN: 00783643208865

UNSPSC: 39121601

Country of Origin: Mexico

Type
Type ED2 Low Voltage
Trip Type
Thermal Magnetic
Interrupt Rating
10 kA
Number of Poles
2
Frequency Rating
50/60 Hz
Mounting Type
Panel
Connection Type
Load Lug
Phase
1
Amperage Rating
30 A
Temperature Rating
40 deg C
Frame
ED
BABA Compliant
No
Dimensions
3 in L x 6 in W x 7 in H
Weight
3.5 lbs
Voltage Rating
240 V AC/125 to 250 V DC
Wire Size
10 to 1/0 AWG
Sold as
EACH
