Description

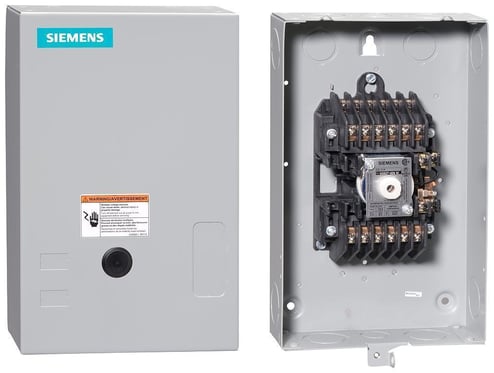

Siemens Lighting Contactor, 110/120 VAC Coil, 20 A Maximum Load Current, 600 VA Pickup, 6 VA Holding Coil, 3 Pole, 50/60 Hz Frequency, Non-Combination Contact, 12NO Contact Configuration, 4 Auxiliary Contacts, Screw Connection, NEMA 1 Enclosure, Surface Mounting, 14 in H x 8 in W x 7 in D Dimensions
Features
- Mechanically held operational mode
- 75 deg C temperature of the conductor for load-side outgoing feeder maximum permissible, conductor at magnet coil maximum permissible, conductor for supply maximum permissible
- Copper material of the conductor for supply, load side outgoing feeder and at magnet coil
Specifications
GTIN: 00754554511467
UNSPSC: 39121529
Country of Origin: Mexico
| Type | Mechanically Held Combination |
|---|---|
| Terminal Type | Screw |
| Maximum Load Current | 20 A |
| Number of Poles | 3 |
| Frequency Rating | 50/60 Hz |
| Coil Power Rating | 600 VA Pickup, 6 VA Holding |
| Enclosure Type | NEMA 1 |
| Dimensions | 14 in H x 8 in W x 7 in D |
| Coil Voltage | 110/120 V AC |
| Mounting Type | Surface |
| Connection Type | Screw |
| Contact Type | Non-Combination |
| Number of Auxiliary Contacts | 4 |
| BABA Compliant | No |
| Contact Configuration | 12NO |
| Sold as | EACH |
