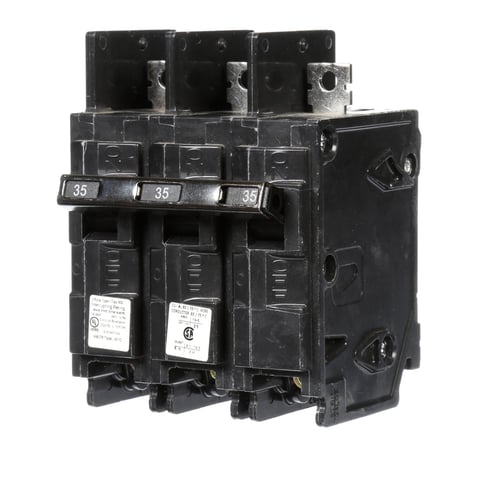

Siemens BQ3B035 Type BQ Low Voltage Molded Case Circuit Breaker, 240 VAC, 35 A, 10 kA Interrupt, 3 Poles, Thermal/Magnetic Trip


Description

Siemens Molded Case Circuit Breaker, Type BQ Low Voltage, 240 VAC, 35 A, 50/60 Hz Frequency, 10 kA Interrupt, Thermal/Magnetic Trip, 3 Pole, 3 ph, Handle Actuator, Bolt-On/Lug-In/Lug-Out Connection, 14 to 6 AWG, 12 to 10 AWG Wire, Panel Mounting, 40 deg C, 3 in L x 3 in W x 3 in H Dimensions, Black

Circuit breakers provide a manual means of energizing and de-energizing a circuit. In addition, circuit breakers provide automatic over current protection of a circuit. A circuit breaker allows a circuit to be reactivated quickly after a short circuit or overload is cleared. Unlike fuses, which must be replaced when they open, a simple flip of the breakers operating handle restores the circuit.

Features

  • Sense when an over current occurs
  • Measure the amount of over current
  • Act by tripping quickly enough to prevent damage to itself and associated conductors
  • Lug in/lug out with insta-wire
  • 14 to 6 AWG copper, 12 to 10 AWG aluminum wire

Specifications

GTIN: 00783643161269

UNSPSC: 39121601

Country of Origin: Mexico

Type
Type BQ Low Voltage
Trip Type
Thermal Magnetic
Wire Size
14 to 6 AWG, 12 to 10 AWG
Interrupt Rating
10 kA
Number of Poles
3
Color
Black
Frequency Rating
50/60 Hz
Voltage Rating
240 V AC
Actuator Type
Handle
Weight
0.3 lbs
Dimensions
3 in L x 3 in W x 3 in H
Mounting Type
Panel
Connection Type
Bolt-On/Lug-In/Lug-Out
Phase
3
Amperage Rating
35 A
Temperature Rating
40 deg C
BABA Compliant
No
Sold as
EACH
